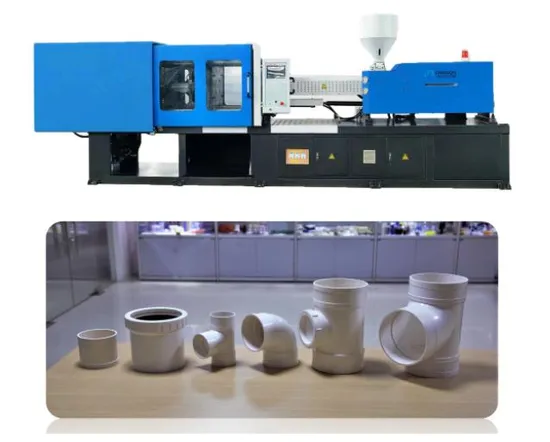

Plastic PVC PPR Pipe Fittings Pipe Joint Making Machine Injection Molding Machine

Product Description

Founded in 1970, Yuanda Group is committed to research and development and production of plastic molding equipment,Such as the Extrusion blow molding machine , PET blow molding machine ,Injection blow molding machine (IBM machine), Injection molding machine ect. including the peripheral equipment , such as refrigeration equipment and power generation system equipment. With more than 29 years old working expereice , we can offer the whole equipment for customer plastic factory produce complete project,and strong technical support and advanced complete sets of equipment for many customers in China and overseas.

Screw diameter	mm	60	65	70
Screw L/D ratio	L/D	22.7	21	19.5
Shot weight	gram	772	905	1050
Injection capacity	cm3	848	995	1154
Injection pressure	Mpa	207	176	152
Theoretical injection rate	g/s	241	283	328
Plastic capacity	g/s	35.2	43.3	51.8
Injection stroke	mm	300
Screw torque	N.m	2530
Max screw rotate speed	r/min	150
Clamping force	Ton	300
Opening stroke	mm	590
Space between tie bars	mm	610×610
Mould height	mm	220~630
Max daylight	mm	1220
Ejector force	ton	70.6
Ejector stroke	mm	150
Ejector quantity		9
Oil pump motor	kw	30
Pump pressure	Mpa	16
Heating power	kw	22
Machine size	M	6.7*1.75*2.25
Machine weight	ton	11
Oil tank capacity	L	560
International designation		3000-1750

about many other advanced technical data, please require me !
Due to the company's fast technology update and technical confidentiality,for blow molding machine,Extrusion Blow Molding ,Injection blow molding machine ,PET blow molding machine , injection molding machine , blowing mould,plastic bottle making machine,plastic bottle mould ,bottle machine , relevant advanced technical parameters must be consulted our sales engineers.

---
