Horizontal Ribbon Blender Powder Mixer with Vacuum Conveying System

Product Description

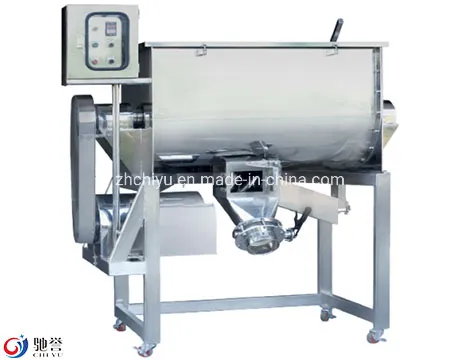

Horizontal ribbon blender powder mixer with vacuum conveying system
Scope of Application:
In the U shape container, there are positive and negative ribbons. Special proportion of the two ribbons can be rectified with the kind of material, quantity and the proportion of body. The ribbon blender has good effect on mixing viscosity or cohesion powder.
Characteristic:
A, Fast mixing speed can satisfy the rigorous demand of mixing the materials with different physical property.
B, The rotation is under critical speed, which will reduce the effect of fragmentation to the material(e. G. Crystal particle)
C, Lower height of the container is convenient for installation.
D, The positive and negative ribbons are set up at he same level, forming a mixing environment of low power but high efficiency.
Working Principle:
A, The horizontal axes make the materials move up and down.
B, The outer ribbon gathering the material from sides to center and the inner ribbon pushing the material from center to sides.
C, Every screw makes the materials do axial and radial movement, the materials do relative cyclical movement so to gain the intensive mixings ends.
Seal:
Our company provides various sealing devices according to difference of materials. The normal sealing structure is stuff seal and also called TEFLON seal. After using for a period, user(s) should fasten and enhance it. However, the dynamic seal has a long-time sealing effect and is especially fit for the powder, liquid.
Feeding inlet on the body cover:
Two types:
A, used in the whole mixing/ blending process: In order to connect the feeding device, we design the connecting mouth
B, used in the manual feeding: In order to operate and clean inside of the body, we design feeding inlet(s) or door(s).
Advantage:
(1) Large loading factor and small equipment area.
(2) With the shear blade inside, the micro mixing can be achieved.
(3) According to the production demand, the equipment can be used as a large-scale machine, and the price is cheaper than other mixers.
Main Technical Parameter:

Item Model	Working Capacity(m3)	Max Capacity (kg)	Rate of Stirring(r/min)	Motor Power (kw)	Weight(kg)
WHS300	0.18	180	62	5.5	550
WHS500	0.3	300	62	7.5	900
WHS1000	0.6	600	49	11	1600
WHS1500	0.9	900	47	15	1800
WHS2000	1.2	1200	33	15	2500
WHS3000	1.8	1800	33	18.5	3400
WHS4000	2.4	2400	27	22	4000
WHS5000	3	3000	27	30	4680
WHS6000	3.6	3600	27	37	5600
WHS8000	4.8	4800	22	45	6500
WHS10000	6	6000	22	55	7800

About our company:
Zhangjiagang Chiyu Automation Machinery Co., Ltd. is specialized in manufacturing of plastic mixing &auto dosing mixing feeding machinery, our company is located at Zhangjiagang City, Jiangsu Province, around 2 hours' drive from Shanghai.
Our main products as below:
1. Plastic hot&cool mixer
2. Automatic weighing mixing conveying system for powder/pellet material
3. Additives auto dosing weighing machine
4. Pneumatic conveying system for powder/pellet material
5. Centralized automatic compounding system

---
