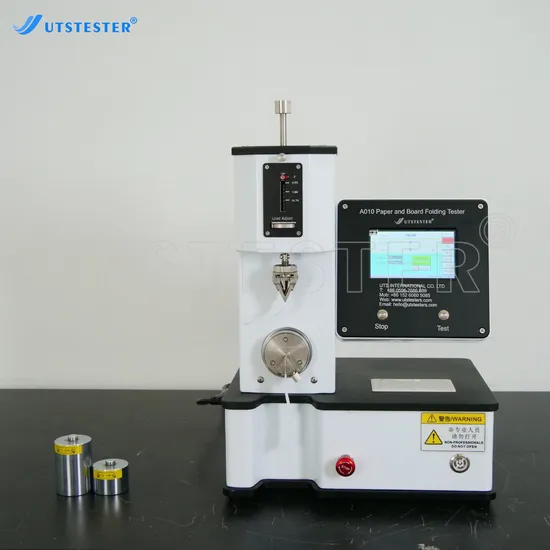

Automatic Paper and Board Folding Tester Folding Endurance Tester

Product Description

Product Description
Paper folding tester is used to test folding time of paper, it can also be used to test other materails that need to have endure folding function, such as case board, craft paper, paperboard, corrugated paper grey paper.
Standard

GB/T457; QB2679.5; ISO 5626

Features Save the initial Settings when the power is off, and the test is automatically reset; Automatic measurement, intelligent judgment function, breakpoint automatic stop to save data; Independent suction ventilation and heat dissipation system, suitable for long-term fatigue test internal heat; Application Range

Various paper, case board, craft paper, paperboard, corrugated paper grey paper.

Product Parameters

Model	Technical parameters:
Pressure Measurement range	5000N
Measuring size selection:	(350×350×400)mm
Resolution Ratio	0.01N
Force accuracy	±1% or less
Deformation amount error	≤±1mm
Test force test range	0.4%~100%FS
Parallelism of platen	≤1mm

Test speed	(55±5) mm/min
Upper and lower air shift speed	140 mm/min
Unit interchangeability	N/Lbf /kgf
Human-machine interface	liquid crystal display, with curve display
Printer	modular one-piece thermal printer
Working Environment	temperature (20 ± 10 ° C), humidity < 85%
External dimensions	(L × b × h): 580 × 440 × 850mm
Weight	about 150KG

More Products
Company Profile
Our Exhibition
Our Customers
Our Advantages
FAQ
Q: How is your service?
- All of test devices will be calibrated and debugged before delivery to guaranty the quality.
- Our professional after-sale team will help you solving any problem within 24 hours* 7 days by emails or videos
- English operation manual and operation video will guide you how to use it.
- On-site machine training & installation can be provided with certain charges.
Q: What's your warranty period? A.12 months. In case of product problems, we provide needed spares parts for free during the warranty (exclude consumables and man-made damages)
Q: What's the payment term?
A: Usually TT, L/C are available. For others, please contact with us for negotiation.
Q: What's your lead time? A.We have professional production line and stuff whom can make a nice quality in a short time. Usually, within 5-25 days is ok, which is based on the stock status.
Q: Are you able to provide a ISO 17025 calibration certificate?
A: Yes, we generally provide two calibration certificates(optional).
• ISO 17025 certificate provided by a third party inspection company with charges.
• Calibration certificate provided by UTS without charges.
Q: Can you send report of fumigation report?
A: Our packing is composite board, not log, so it do not need fumigation treatment.
