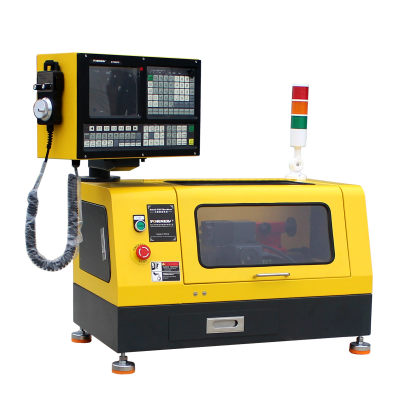

Product Details
Product Description
Product Description
Features
(1).Automatic 4 positions tool post.
(2).KY 980Tc Turning CNC System, Optional GSK 980Tb or Mach3
(3).ARM 9 CPU+FPGA,Support B macro function,PLC function,Mutil-language library function.
(4).Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.
(5). The standard spec includes MPG hand wheel.
(6). USB and RS232 port,
(7). Control speed of G code.
(8). Selection of high -quality casting materials, more compact.
(9). A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.
(10). 220VAC or 110VAC single-phase AC power supply.
(11). Safety electrical components of high quality.
(12). Auto power off when door open.
(13). Applicable industry: technology development, advertising design, art, vocational technical college Education & Training CNC and DIY enthusiasts.
Technical parameters
|
Turning diameter over bed(max)
| 140mm
|
Travel across slide
| 75mm
|
Chuck diameter
| 80mm
|
Spindle speed
| 100-2000r/min(control speed of G code)
|
Spindle through-hole
| 11mm
|
Spindle mount
| MT2
|
Spindle motor power
| 150W
|
X travel
| 70mm
|
Z travel
| 160mm
|
The max moving speed
| 2000mm/min
|
The max feeding speed
| 1000mm/min
|
Control system
| KY 980 Turning CNC System
|
Instruction
| Run ISO G code
|
Tool position
| 4
|
Tool dimension
| 8×8mm
|
Tailstock taper
| MT1
|
Tailstock sleeve diameter
| 20mm
|
Travel of tailstock
| 25mm
|
Positioning accuracy
| 0.02mm
|
Repeatability accuracy
| 0.02mm
|
Power
| 220VAC / 110VAC
|
Weight(NW/GW)
| 80/100KG
|
Overall dimension
| 750*450*800mm
|
Packing size
| 850*550*950mm
|
>>
