Drop Fiber Optic Cable (FRP or steel wire strength unit) Gjyxch/GJYXFCH for Telephone Communication

Product Description

Self-Supported drop fiber optic cable(FRP or steel wire strength unit)GJYXCH/GJYXFCH Product Parameters
Structural parameter

Fiber Count	Cable dimension (mm)	Cable weight (kg/km)	Tensile Strength Long/short term (N)	Crush resistance Long/short term (N/100mm)	Bending Radius Dynamic/static (mm)
1	(2.0±0.1)x(5.0±0.1)	21	300/600	1000/2200	15/30
2	(2.0±0.1)x(5.0±0.1)	21	300/600	1000/2200	15/30

Optical characteristics

Fiber type	Attenuation				Full injection bandwidth	Effective mode bandwidth	10G Ethernet link length	Minimum bend radius
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
	Normal	Max	Normal	Max
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G657A1	0.36/0.22	0.5/0.4	-	-	-	-	-	10
G657A2	0.36/0.22	0.5/0.4	-	-	-	-	-	7.5
OM3	-	-	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	-		3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30

Transportation &operating temperature: -20°C~+60°C
Ordering information

Fiber count	1-2
Fiber type	B6A1=G657A1, B6A2=G657A2, A1=50/125, A1b=62.5/125, OM3=Maxband*150, OM3=Maxband*300 OM4= Maxband*550, OM5= Maxband*550
Fiber color	Refer to Chromatogram
Strength unit type	FRR,steel wire
Outer jacket color	Refer to Chromatogram
Marking &Package	Per customer's request or factory standard

Note: 1.Delivery length can be customized according to customer's requirements. 2.Chromatogram as below.

No.	1	2	3	4	5	6
Color	Blue	Orange	Green	Brown	Gray	White
No.	7	8	9	10	11	12
Color	Red	Black	Yellow	Violet	Pink	Aqua

Product Description
Product profile
The Self-Supported drop fiber optic cable used for the access network is to place the optical communication fiber in the center; two parallel fiber reinforce plastic (FRP) or steel wire are placed on both sides, and add a steel wire reinforcing element on the outside, finally a black or colored low-smoke halogen-freejacket is extruded into the cable.
Product feature
•Special bending resistant fiber provides greater bandwidth and enhanced network transmission characteristics.
•Two parallel strength units ensure good performance of crush resistance to protect the fiber.
•Added a single steel wire additional strengthening element to make the optical cable have good tensile perfor-mance.
•Simple structure, light weight and high practicability.
•Special groove design, easy to strip, simplify the installation and maintenance.
Application

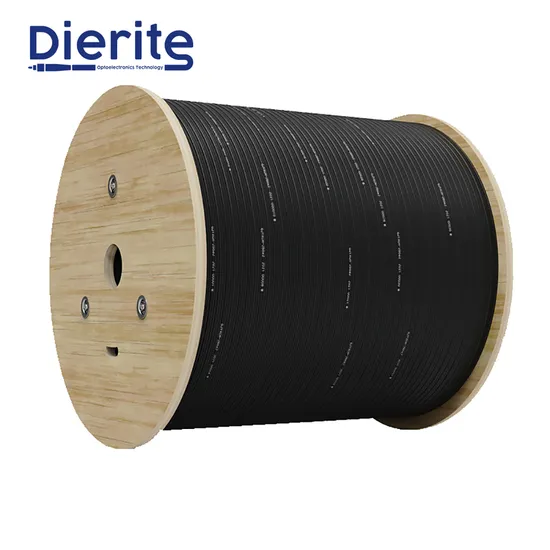

Packaging & Shipping

Company Profile
Jiangsu Dierite Optoelectronics Technology Co., Ltd. is a professional optical fiber cable manufacturer with own R&D center; marketing center and production base, located in Changzhou Jiangsu China, close to Shanghai and Ningbo port. Our company is committed to provide first-class solutions and OEM services for operaton system integrators and Integrated wiring provider Products cover indoor and outdoor fiber optic cable, fiber optic patch cord, PLC splitter; adaptecattenuatocetc.
Dierite was established in 2010, now our workshop area is about 5000 square meters, and has more than 150 workers. We are also a national high-tech enterprises with ISO 9001,CE/RoHS and many Utility Model Patent Certificates. Our factory controls the quality constantly and strictly in order to give the best products to the users.
Products have been widely used in telecommunications, broadband, and network industry and are exported to Asia, North America, South America, Europe and other places. As an original manufacturer; we will accelerate the development of the global 5G era with the most stringent quality and the most competitive price.
