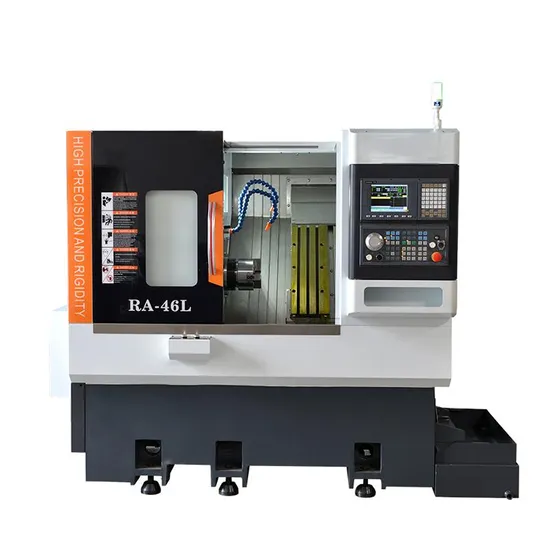

High Quality Vertical and Horizontal CNC Slant Bed Lathe for Metals

Product Description

Introducing our state-of-the-art Automated Vertical CNC Drilling Lathe with a slant bed, engineered for unparalleled precision and efficiency.
Product Description

Processing Capability			Unit	RA-46T
Processing Capability	Maximum bed swivel diameter		mm	Φ420
	Maximum machining diameter		mm	Φ300
	Maximum machining diameter on the tool holder		mm	Φ126
	Maximum processing length		mm	300
	Maximum bar through-hole diameter		mm	Φ46
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-5
	Spindle through-hole diameter		mm	Φ56
	Maximum spindle speed		rpm	4500
	Hydraulic cylinders/chucks		Inch	6''
Axis feed	Axis travel	X-Axis	mm	450
		Z-Axis	mm	350
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
	Rail Type		/	Linear track 30 (ball)
Turret	Number of tool positions		pcs	80-12T
	OD tool holder specifications		mm	20x20
	I.D. Tool Holder Specifications		mm	Φ20

CNC turret lathe is a versatile marvel in the manufacturing industry, expertly utilized across a wide array of sectors. From automotive components and mechanical parts to intricate moulds, shafts, wheels, and diverse metal parts, this machine is the epitome of efficiency. It thrives in scenarios demanding mass production, remarkable precision, and the fabrication of complex geometries. Capable of handling various materials with finesse, it significantly boosts the competitive edge and productivity of enterprises.
• High-precision machining: Our Precision CNC Slant Bed Lathe with A2-5 Spindle for Steel Structure is crafted to redefine standards in precision machining. It delivers exceptional accuracy for tasks that require ultra-refined cutting capabilities. With impeccable attention to detail in internal and external precision, as well as roundness and coaxiality, it establishes a groundbreaking standard in high-precision engineering.
• Multiple processes: This all-in-one powerhouse effortlessly manages an extensive array of complex processing tasks. Whether it's radial or axial cutting, drilling, tapping, hobbing, scribing, or drawing, this machine offers an all-encompassing suite of multi-process capabilities. It stands as a robust and efficient solution, integrating these sophisticated processes seamlessly.
• Clamping and positioning the workpiece:
The fundamental role of the gripper is to secure the workpiece with unwavering firmness, ensuring its position remains steadfast during the entire machining process. This stability is paramount in maintaining superior standards of accuracy and quality.
With its exacting precision in positioning, the gripper guarantees the workpiece's perfect alignment with the cutting tool, delivering unmatched machining accuracy that meets the most exacting specifications.
• Solve special clamping problems:
When machining non-standard parts such as holes, shafts, slots, and threads that aren't bushings or wheels, our specialized fixtures provide bespoke and efficient solutions, ensuring peak performance and precision.
These bespoke fixtures are meticulously engineered to meet unique machining demands, effectively overcoming clamping challenges that standard fixtures cannot, thereby offering unrivaled versatility and efficiency in every application.

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Detailed Photos
Control System
Anoher Advantages
• Immerse yourself in unparalleled processing conditions within a state-of-the-art, avant-garde production facility.
Our superior imported machinery, featuring horizontal and vertical machining centers, CNC boring machines with rotary tables, and gantry guideway grinding machines, delivers exceptional workpiece precision. This significantly boosts assembly accuracy and prolongs the operational lifespan of each tool.
• Cutting-Edge Inspection Techniques
Positioning accuracy is meticulously tested and finely calibrated through advanced laser technology, in strict compliance with the German VDI3411 standards (conducted 5 times per standard).
Every machine tool is subjected to stringent processing evaluations before dispatch, ensuring they consistently exceed rigorous processing accuracy requirements.
Product sample
• Experience an extraordinary leap in operational efficiency with our state-of-the-art Automated Vertical CNC Drilling Lathe. This marvel of engineering brings together advanced milling, drilling, and tapping functionalities in a fluid, seamless manner, revolutionizing productivity like never before.
• Achieve mastery in precision engineering with our CNC machine, crafted to perfection to accommodate a vast array of materials. Whether you are working with aluminum, steel, copper, or intricate non-metal profiles, expect nothing less than impeccable performance for every project you undertake.
• Amplify your production prowess across a broad spectrum of industries. From the innovative realms of 3C electronics and the robust needs of rail transportation, to the cutting-edge demands of aerospace and the precision of linear module guide rails, our versatile CNC machining solutions are engineered to seamlessly integrate and elevate your operational capabilities.
Packaging & Shipping
•Highly Protective: Our cutting-edge packaging solutions are meticulously crafted to ensure the Automated Vertical CNC Drilling Lathe reaches you in impeccable condition. This robust system offers unparalleled protection against any potential transit-related harm, guaranteeing utmost safety and security.
•Structural Stability: Our packaging is masterfully engineered to fortify the machine's structural integrity, keeping all components in pristine order upon arrival. This ensures an effortless transition to use, enabling immediate operation directly out of the box.
•Environmentally Friendly and Recyclable: Driven by our unwavering commitment to sustainability, we use eco-friendly packaging materials that are not only durable but also completely recyclable. This approach significantly diminishes environmental impact while upholding superior performance standards.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments. To secure your order, a 40% initial deposit is required, with the remaining 60% balance due before shipment.
2. What are your trade terms?
A: Our flexible trade terms include FOB, CFR, and CIF, allowing you to choose the most convenient option.
3. When is the delivery time?
A: For our standard Automated Vertical CNC Drilling Lathe, delivery is guaranteed within 30 days. Custom or special machines may take longer. Please refer to our delivery schedule when placing your order.
4. What is your minimum order quantity and warranty?
A: The minimum order quantity is just one set, and we provide a robust one-year warranty.
5. How are the machines packaged?
A: Each machine is securely packed in a strong wooden case to ensure it arrives in pristine condition.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the best model for your needs. You can also select the model yourself.
Alternatively, send us your product drawings, and we will determine the ideal machine configuration for you.

---
