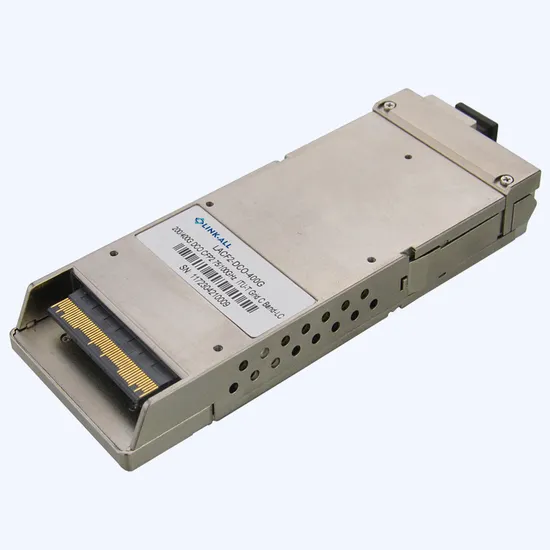

400g Cfp2 Dco Coherent 640 Km Module

Product Description

400G CFP2-DCO Coherent 640 km
PRODUCT FEATURES Hot pluggable 104-pin electrical interface Reach beyond 640km/2000km over SMF for 400G/200G transmission Support 75GHz/100GHz channel spacing Support OTN Framer LC duplex connector Hot-Pluggable Single 3.3V power supply
Power consumption 33W Operating case temperature: 0°C to 70°C Support PM-16QAM(400G)/PM-QPSK(200G) modulation Compliant with CFP2 MSA Hardware Specification Rev. 1.0 Compliant with CFP MSA Management Interface Specification Version 2.6 (R06a)
Function Description
Absolute Maximum Rating
Figure1-1400GCFP2-DCO
The module is intended to beused on system integrators host board to support transmission over DWDM
links in Metrone tworks. it is comprisedof high-datalanes, asinglereference clock from hosts, a single 3.3V power supply, an MDIO interface,and dedicated alarm and controlpins. The 400G CFP2-DCO module uses a 104 pin CFP2 MSA connector for allelectrical interfaceswiththehost board,where as the optical interfaces on the lines idea reprovided through the opticalreceptaclesonthe CFP2.The module can be portionedintothree functional parts:Tx path,Rx path and Control & Power block.All control interface pins are routed to the MCU and oDSP. MCU is also used for other fast controls needed inside the module such as modulator bias adjustment, firmware management,overall control coordination and statusreporting.

---
