Hot Sell High Strength FRP Plastic Composite Molded Grating for Walk Way

Product Description

Product Description
FRP grating has a variety of options in terms of specifications and sizes. The thickness is commonly between 25mm and 75mm, such as 25mm, 30mm, 38mm, 50mm, 65mm, 75mm and other different specifications. There are differences in the load-bearing capacity of gratings of different thicknesses. Generally, the larger the thickness, the stronger the load-bearing capacity. The apertures (grid sizes) are also varied, with common sizes of 19mm×19mm, 25mm×25mm, 30mm×30mm, 38mm×38mm, 50mm×50mm, etc. Smaller apertures are more suitable for preventing small objects from falling, while larger aperture grilles are used in some scenarios where ventilation and drainage requirements are high and there is no need to prevent small objects from passing through. In terms of sheet size, it is generally produced and sold in the form of a whole sheet. Common whole sheet sizes include 1220mm×3660mm, 1000mm×4000mm, 1220mm×2440mm, etc. In actual applications, it can be cut and spliced as needed to meet the different installation site size requirements.
Product Parameters

Product name	Grille
Brand	Hengrun
Color	Yellow,Green,Gray,Red, Customized
Mesh length	25mm, 38mm, etc, customized
Type	FRP Grille
Thickness	25-65mm
Thick muscle	7mm
Function	Sewage, Drain, Preservative, Ventilation

Detailed Photos

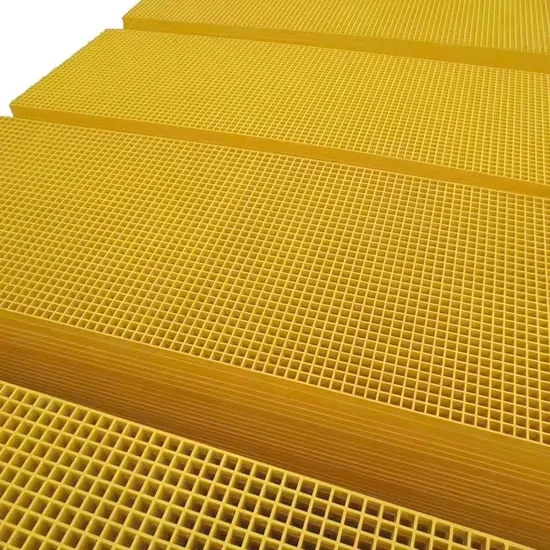

The product Molded glass fiber reinforced plastic grating (FRO grating for short) is a kind of glass fiber as reinforcing material and unsaturated polyester rein as matrix, which is integrally molded by glass fiber interlaced resin casting. The product is composed of several symmetrical lattices, which have bidirectional characteristics in the longitudinal and transverse directions.

Thickness(mm)	Single cell size(mm*mm)	Length*Width(mm)	Upper rib width	Lower rib width	Porosity	Whole board weight
40	40*40	1007*3007	7	5	64	60
25	38*38	1220*3660	6.4	5	69	52
38	38*38	1220*3660	7	5	69	85
50	50*50	1220*3660	8	6	72	100
30	38*38	100*4040	6.5	5	69	75
38	25*152	1145*2900	10	8	60	76
30	25*25 50*50	1220*3660	6.5	5	64	84

CraftsmanshipThe FRP molded grille is made by cross-weaving glass fibers and integrally molded by resin casting:1. The interlaced weaving of glass fibers and the full penetration of resin make the grille resistant to corrosion to the greatest extent.2. The glass fiber and resin are crossed and composited, and the overall structure will distribute the load evenly, which is helpful for the grid installation and the uniform stress of the installation support structure. Enhance load bearing capacity.3. Wear-resistant and non-slip surface: The concave surface of the grille makes the grille have anti-skid performance, and the sand-paved surface has a better anti-skid effect.4. The surface gloss of the grille and the italic grille surface make the grille have a self-cleaning effect.Packaging & Shipping
Company Profile
Hengrun is one of the earliest manufactures of FRP composite materials in China.It is located in Hengshui City, Hebei Province, China. It has a history of nearly 50 years. Taking science and technology as the guide, the company has 4 invention patents and 28 utility model patents. The company has successfully passed ISO9001 quality management system certification, ISO14001 environmental management system certification, GB/T28001 occupational health and safety management system certification, and British Water Industry Association WRAS certification.
Our factory
Our team:
Certification:
Customer Visits:
FAQ
Q: Can your factory provide customized services?A: Yes, we can. From small parts to large machines, we can provide most kinds of customized services.Q: Can you do OEM?A: Yes, we can offer OEM & ODM.Q: l am interested in your products, can l have a sample for free?A: We could offer that.Q: What is your payment term?L/C, T/T, D/PQ: What about the delivery?A: lt depends on the product performance and quantity you need. Because we are the expert, the production time won't take so long.

---
