5L Horizontal Bead Mill for Paint, Ink, Pigment (ZM5 series)

Negotiable 1 set (MOQ)

Basic Info.

Model NO.
ZM5SB3310-X
Function
Wet Grinding for Particle Size Reduce
Applicable Industry
Paint, Ink, Pigment, Agrochemical etc.
Usage
Production
Transport Package
Fumigation Wooden Box
Specification
5L
Trademark
DEGOLD
Origin
Chongqing, China
HS Code
8474202000
Production Capacity
100sets/Year

Product Description

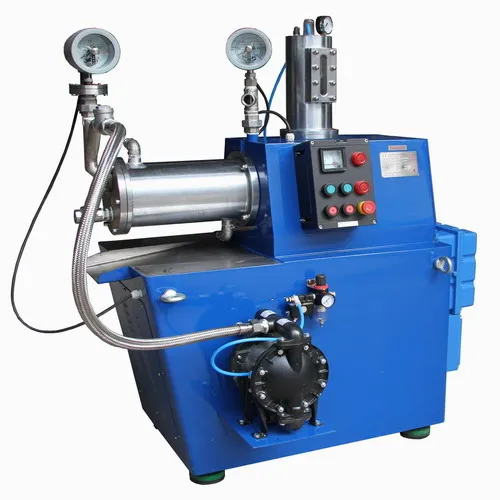

5L horizontal bead mill-Model (ZM5 Series)
5L bead mill/sand mill are the min. size we produce for the production scale. The effective grinindg chamber is only 5 liters, then they suitable for small batches.

Even 5L, there are different materials and constructions to meet with the different grinding requirements. For example,

"ZM5SB3310-X" specification.
1) 5L
2) Double mechanical seal
3) Ex proof
4) Mold steel for inner grinding chamber and grinding discs
5) Double diaphragm fluid transfer pump
6) Without AC drive
7) Dynamic gap separator
8) Chilling water jacket

Option:
1) Single mechanical seal, double mechanical seal.
2) Ex proof or Non Ex proof.
3) SS304, hard alloy, mold steel, ceramic, PU etc. materials selection.
4) Double diaphragm fuild transfer pump, gear pump, screw pump.
5) AC drive or without AC drive.
6) Dynamic gap separator or static gap separator.

Model Parameter ZM5S ZM5D ZM5SB ZM5DB
Effective cylinder volume (L) 5 5 5 5
Main motor power (KW) 7.5/11 7.5/11 7.5/11 7.5/11
Grinding medium load (L) About 85% of the cylinder volume
Materials in/outlet pipe diameter G3/4 G3/4 G3/4 G3/4
Cooling water in/outlet pipe diameter G3/4 G3/4 G3/4 G3/4
Pump pressure 0.7MPa
Compressed air consumption(m 3 /min) 0.2
