Conical Refiner for Kraft Paper Mill

Product Description

Product Description

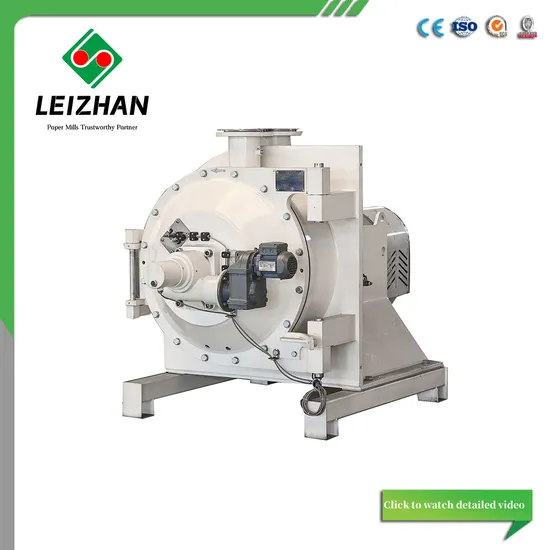

Double Disc Refiner is a continuous beating equipment for the paper pulping system. It has the characteristics of compact structure, small footprint, high efficiency, low power consumption, strong adaptability, simple operation, flexible adjustment, and convenient maintenance. It is the ideal continuous Beating equipment. According to the requirements of the beating process, single or multiple units can be used in series or parallel.
Detailed Photos
Product Parameters
Advantage
1. Mainly used for beating pulp to improve the tapping degree of pulp and meet the needs of paper making.
2. A variety of tooth-shaped grinding discs can be installed, with a wide range of raw materials, suitable for wood pulp, chemical pulp, chemical pulp, waste paper pulp, etc.
3. Double grinding zone, high refining efficiency.
4. High versatility and convenient maintenance.

Model	ZDP-380	ZDP-400	ZDP-450	ZDP-550	ZDP-600	ZDP-660
Refiner plate dia (mm)	380	400	450	550	600	660
Capacity (T/D)	6-20	7-25	8-40	20-100	30-150	40-200
Inlet Consistency: (%)	2-5
Inlet pressure (Mpa)	0.1-0.3
Inlet pipe dia (mm)	2-65	2-65	2-70	2-90	2-110	2-130
Outlet pipe dia (mm)	80	80	90	100	120	150
Motor Power: (kW)	37	37	90	160-250	200-315	220-500
Main shaft speed	980	980	980	980	980	750
