Product Description
Product Description

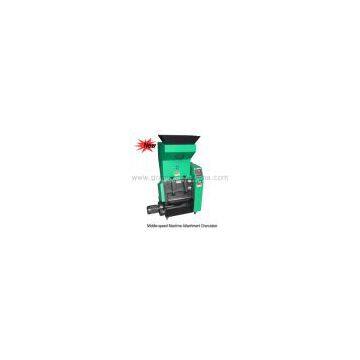

The middle-speed beside-the-press granulators of RG-21 sereis are used together with plastics molding machine. It is designed to crush small shorts material and recycle them together with original material according to specificed proportion in order to avoide to reduce wastes, save power source, increase the utilization ratio of plastic material and lower the cost.
The characters of the machine
(1) The patent of bearing seat in order to avoide dust entering intothe bearing, long time using.
(2) Integral body, sturdy and durable, long time operation life, keepexcellent performance after using long time.
(3) Overload protector for motor and interlock protection device, double protection for the safety of worker and motor.
(4) Special cutter design adopting shear principle, made of high-chrominum shred, crush various plastics wastes easily.
(5) The gap of knives is adjustable, they can be dismounted when the have been unsharpde, and to be used repeatedly, long time using life.
(6) Separable design, the bunker, main body, mesh frame are dismounted easily, convenient for bunker cleaning.
(7) Special design in order to reduce the noise and vibration.
(8) Equipped with casters so as to move easily.
Specifications:
| Model | RG-2136 | RG-2142 |
| Power | kw | 3(1.5) | 4(2.2) |
| Diameter of rotation | mm | 210 | 210 |
| Rotating speed | r/min | 315(200) | 315(200) |
| Rotating blades | PCS | 3 | 3 |
| Fixed blades | PCS | 2 | 2 |
| Cutting chamber | mm | 210X360 | 210X420 |
| Output | kg/h | 150-250 | 200-300 |
| Noise | dB(A) | 80-90 | 80-90 |
| Evacuation Blower | - | ● | ● |
| Evacuation Air | - | ○ | ○ |
| Amounted magnetic lron at charging inlet | - | ○ | ○ |
| Instantaneous retrieving system | - | ● | ● |
| Weight | kg | 300 | 360 |
We reserve the right to change specifications without prior notice.
1) "●" is standard allocation, "○" is selection purchase.
2) The machine voltage specification is 3Φ, 380V, 50Hz. The voltage can be changed as you require.
>>
