Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Certification
CE, ISO9001: 2000
Gross Power
110 Kw at 2000 Rpm
Engine Bore X Stroke
102 X 120 mm
Starting Motor
24 V, 4.5 Kw
Swing
Axial Piston Motor with Automatic Brake
Drive Method
Fully Hydrostatic Type
Drive Motor
Axial Piston Motor, in-Shoe Design
Reduction System
Planetary Reduction Gear
Max. Travel Speed (High / Low)
5.7 Km/Hr/ 3.5 Km/Hr
Transport Package
Nude Packing
Specification
12030*3190*3280mm
Production Capacity
5000 Pieces/Year
Product Description

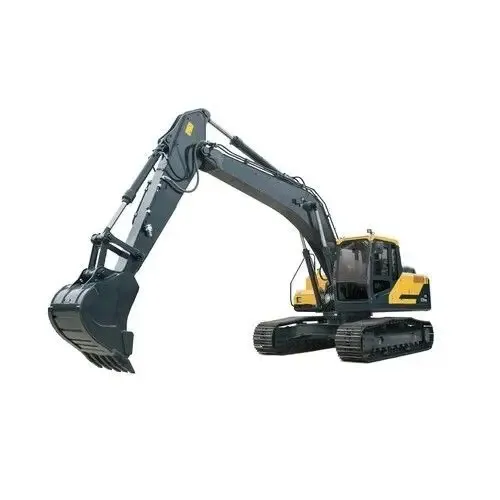

Hot Sales 21Ton Crawler Excavator HX220HD With Hammer
Product Description
HX220HD is one of HX series excavator. The true value of the HX Series lies in its durability. The robust frame structure and the attachments show the real value of the HX Series in tough working environments and promise higher productivity.
Product Characteristics
New Cabin for More Comfort
Low noise, low vibration, and ergonomic design make the cabin space more comfortable and pleasant! With focus on safety and convenience of operators, the HX Series allows rapid and safe equipment inspection anytime and anywhere, providing an optimal environment for operators to work.
Improved Instrument Panel for Easier Monitoring
Many electronic functions are concentrated in the most convenient spot for operators to improve work efficiency. The highly-advanced infotainment system, a product of HCE's intensive information technology development, enables both productivity and comfort while working! The HX Series is designed with the operator in mind.
Product Parameters
Item
| UNIT
| Parameter
|
Operating weight
| Kg
| 21400
|
Bucket volume
| M³
| 0.87 ~ 1.20
|
Engine
| /
| 6BTAA-5.9
|
Boom length
| Mm
| 5680
|
Arm length
| Mm
| 2920
|
Track Gauge
| Mm
| 2390
|
Min. Ground Clearance
| Mm
| 470
|
Overall Width of Upperstructure
| Mm
| 2700
|
Rear-end Length
| Mm
| 2770
|
Tail Swing Radius
| Mm
| 2845
|
Tumbler Distance
| Mm
| 3650
|
Overall Length of Crawler
| Mm
| 4440
|
Ground Clearance of Counterweight
| Mm
| 1060
|
Arm Length
| Mm
| 2920
|
Detailed Photos
