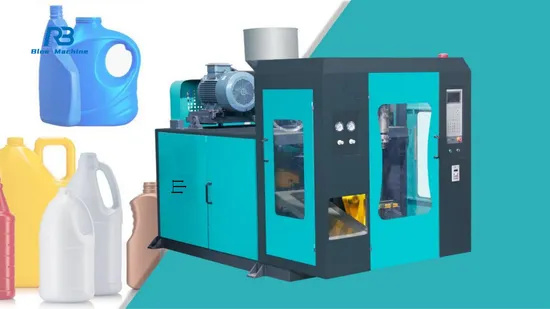

7L 10L 15-20L Continuous Extrusion PE PP PC Blow Moulding Machine

Product Description

Blow machine model no. RB-75, RB- 80, and RB-90.
Continuous extrusion blow machine mainly used to produce small capacity hollow products, such as bottle, pot, etc. From 1L to 20L. Normally there are two blow station for contiuous extrusion blow machine, so the production quantity can be double when running two positions working together at same time.
Control system.
Siemens Human Machine Interface
The human-machine interface monitors and operates the screen,displaying parameter settings,fault information, machine status,and allowing operators to set,store, and retrieve parameters based on product settings.The operation is simple,convenient, and flexible.
MooG100 Point Thickness Control System
MOOG is recognized as a leader in the field of motion control in the blow molding industry.The dedicated controller can meet the special requirements of new and upgraded machines. The product integrates MOOG's servo proportional valves and DCDT to control stroke position, ensuring precise control of the opening position of the mold cavity on the blow molding machine.
2. Extrution. The screw material is selected as 38Cr with screw flight sprayed with nickel-based + 10% carbide alloy;subjected to processes such as quenching alloying, and nitriding. Processed with polishing techniques, hardhess: HRC58-62.Alloy thickness:≥2; brittleness:≤Grade 1; surface roughness: Ra: 0.4um.The screw material is selected as 38CrMoAlA, and the raw material is refined through processes such as quenching,alloying,nitriding,and polishing. Hardness HV900-950, brittleness:≤ Grade l; surface roughness: Ra: 0.4um.
3. Auto Lubricant system.
The lubrication system can automatically lubricate the system, and tne uorcauon tme cyce can oe set incependenuy.
Electric system
Using imported electrical components such as Concord from Hong Kong and Schneider, with long service life.The electrical cabinet is embedded with professional industrial fans, ensuring stable operation of the electrical system in hot and humid environments.
4. Hydrulic system
The hydraulic control system adopts proportional servo control technology,with fast response, low energy consumption, minimal heat generation, and leading energy-saving technology domestically. The components are all from internationally renowned brands.

---
