Easy to Use Meet Customization Requirement 1 Ton Mini Crawler Excavator

Product Description

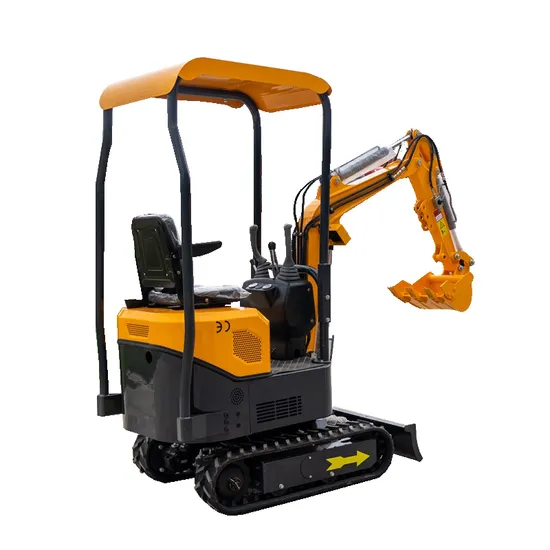

1 ton Excavator (10CS)
1.With EPA/CE,ISO certificate.
2.Optional funcition: Boom swing.

3.Color can choose Red, Yellow, Blue, accept customized.
Product Parameters

Performance Parameter
Weight	1100 kg
Digging bucket capacity	0.025 cbm/140kg
Bucket width	380 mm
Engine	B&S Gasoline engine
Optional Engine	BRIGGS & STRATTON YANMAR
Bore stroke	Single cylinder, fan cool
Rated power	8.5 kw
Main pump	CBK-F6.8
Displacement	6.8 ml/r
Swing motor	SJ-TECH
Traveling motor	KERSEN
Travel speed	1.5 km/h
Main Demensions
Overall dimension( L * W * H)	2770 * 900/1100 * 1490 mm
Wheelbase	910 mm
Total length of track	1230 mm
Platform ground clearance	380 mm
Platform back turming radius	784 mm
Chassis width	896 mm
Track width	180 mm
Chassis ground clearance	132 mm
Track height	320 mm
Operating Range
Max. Digging depth	1650 mm
Max. Vertical digging depth	1375 mm
Max. Digging height	2610 mm
Max. Dumping height	1850 mm
Max. Digging radius on ground	2850 mm
Min. Rolation radus	1330 mm
Max. Upgrade height of bulldozer blade	345 mm
Max. Digging depth a bulldozer blade	255 mm

Company Profile

Packaging & Shipping
FAQ
1.What kind terms of payment can be accepted?For terms of payment, L/C, T/T, Western Union (can be) could accepted.2. What certificates are availble in Machinery?For the certificate, we have ISO,EPA,SGS and CE.3.What about the delivery time?7-20 days after receiving the deposit.4.What about the warranty time?12 months after shipment or 2000 working hours, whichever occurs first.5.What about the Minum Order Quantity?The MOQ is 1 pcs.
6.How to show your manufacture to customers?It depends on you,if you have time,you can come to visit our manufacture. If you do not have time,then we can have vedio call,then show you around our workshop. Our workshop is working from 8:00 am to 5:00pm in Beijing Time!

---
