Automatic Woodworking Wood Large Cutting Machine CNC Beam Saw with High Quality

Product Description

CNC Beam Saw Machine Wood Edge Cutting Machine Intelligent Panel Saw Machinery

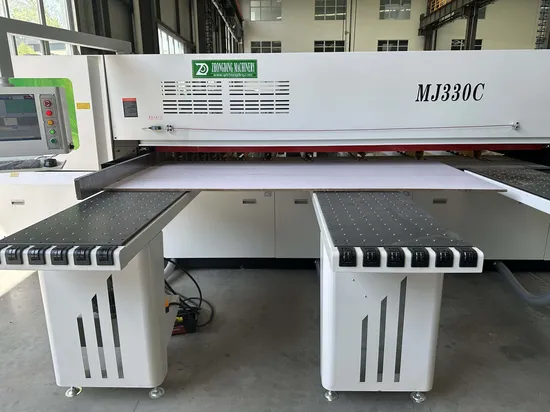

MJ330C
Product Parameters
Here are different kinds of CNC beam saw.Details are as followed.

Model	MJ270C	MJ330C	MJ380C
Sawing length	2700mm	3300mm	3800mm
Sawing thickness	85/100/120mm	85/100/120mm	85/100/120mm
Dia. Of main saw blade	355/400/460mm	355/400/460mm	355/400/460mm
Axis dia. of main saw blade	30/60mm	30/60mm	30/60mm
Rotate speed of main saw blade	3950/4500 rpm	3950/4500 rpm	3950/4500 rpm
Dia. of grooving saw blade	180mm	180mm	180mm
Axis Dia. of grooving saw blade	25.4/30mm	25.4/30mm	25.4/30mm
Rotate speed of grooving saw blade	6300 rpm	6300 rpm	6300 rpm
Saw carriage forward speed	0-120 m/min	0-120 m/min	0-120 m/min
Saw carriage back speed	60-120 m/min	60-120 m/min	60-120 m/min
Head saw motor	7.5/11 kw	7.5/11 kw	7.5/11 kw
Grooving saw motor	1.5kw	1.5kw	1.5kw
Saw carriage drive motor	2.2kw	2.2kw	2.2kw
Automatic feeding motor	1.2kw	2kw	2kw
Pusher motor	2kw	2kw	2kw
High pressure blower motor	2.2kw	2.2kw	2.2kw
Total power	17/21kw	21/27kw	21/27kw
Automatic feeding speed	0-120 m/min	0-120 m/min	0-120 m/min
Operation pressure	5-7kg/cm	5-7kg/cm	5-7kg/cm
Workbench height	950mm	950mm	950mm
Dimensions (L*W*H)	5990*5200*1800mm	6100*6200*1700mm	6450*6800*1900mm

Company Profile
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years.We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance,spare parts and technical advice.
Detailed Photos
High quality accessories
1.Air floating platform under pressure beam, avoiding board scratching and assuring smoother board movement.
2.It has latest design mechanical clip.
3.Use saw height independent lifting system.
We have more than just these benefits, if you are interested, please contact me directly. Packaging & Shipping
