Auto CNC Letters Bender Channel Machine Channelume Bending Machine

Product Description

Product Description

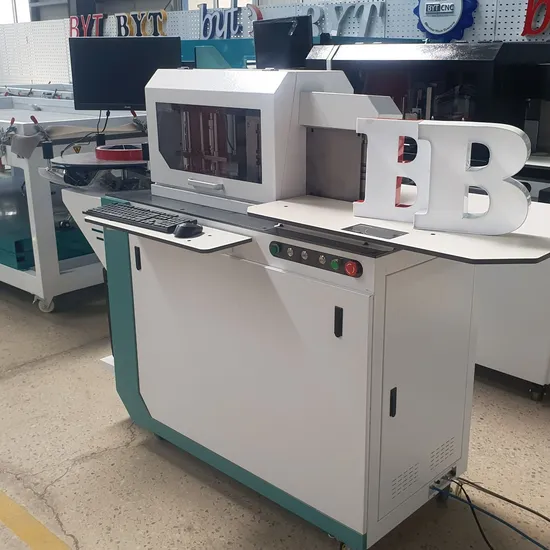

Auto Channel Machine, Channelume Bending Machine, Channel Letter Make Machine

Technical parameter

Model	BWZ-B1	BWZ-F	BWZ-F1
Function	Automatic feeding,slotting and bending	Automatic feeding,slotting and bending	Automatic feeding,slotting and bending
Applicable Material Alu=Aluminum	Flat Alu,Folding Alu,Channelume	Flat Alu,Folding Alu	Flat Alu,Folding Alu
Material Width	Flat Alu:≤160mm Folding Alu:≤160mm Channelume:70,90,110mm	Flat Alu:≤150mm Folding Alu:≤108mm	Flat Alu:≤140mm Folding Alu:≤140mm
Material Thickness	Aluminum:0.3~1.5mm	Aluminum:0.3~1.2mm	Aluminum:0.3~1.0mm
Bending Radius	7mm	12mm	12mm
Feeding	φ36mm feeding wheel+Guide material auxiliary+Encoder	φ30mm feeding wheel +Encoder	φ30mm feeding wheel +Encoder
Slotting System	Motor control	Air cylinder control	Motor control
Bending	Coupled extrusion-Double copper shaft flat arc bender	Coupled extrusion-general arc bender	Coupled extrusion-general arc bender
Control System	ADT	Leetro CBS4	ADT
Power	<1500W	<1500W	<1500W
Air Pressure	0.6MPa	0.6MPa	0.6MPa
File Format	Dxf, Ai,Plt	Dxf, Ai,Plt	Dxf, Ai,Plt
Working Voltage	220V/ 50-60HZ/1P	220V/ 50-60HZ/1P	220V/ 50-60HZ/1P
Net Weight(kgs)	320	240	250
Overall Size(mm)(L*W*H)	2100*800*1530	1350*700*1300	1340*680*1300

Main Parts : 1. Quality Guarantee
Whole machine guarantee 2 years , the motor guarantee 3 years
2.Processing material
Width: 10-160mm, Thickness : Aluminum 0.3-1.5mm 3.Machining parts 1All machining parts be treated with hard chromium plating,which is wear-resistant and corrosion-resistant, especially suitable for coastal areas.

4.Length closed-loop control systemThe software have Length closed-loop control system ,the length precision ≤0.1mm.
Meantime Independent development software system , which can updated according customer need and more easy to use .
5.Whole machine weight meet 300kgs and more stab
Feeding 1.
The feeding roller diameter 36mm and install encoder, ensure the feeding precision and speed.

Notching 1.
Aluminum cutting use 20mm Taiwan PDF guide rail ,the knife 75mm , guarantee the smooth cutting with fast rotating speed and small cutting angle.

Notching 2.
Cutting mode use motor lifting control ,more stable ,not easy damage material and noise small.

Notching 3.
Use four-column design ensure the cutting stable and effect.
Notching 4.
The notching deepness adjust by the slide block on guide rail, adjustment more easy and high precision .
Bending
Use double cooper shaft flat arc bending device , small radian beat and large radian extrusion molding ,processing speed fast and don't damage the material ,every day can finish 80-100 square maters letter.
Application Industry

Advertising industry,such as logos,signs,neon signs,billboards,light boxes production,outdoor advertising and other advertising production
Samples
Our machines can do all jobs, stainless steel letters, aluminum letters.
Company Profiles

After-Sales Service
1.Two years quality guaranty. The machine with main parts(excluding the consumables)
shall be changed free of charge when problems happened during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5.Engineers speaking English12 hours on line serviceeach day, free technical support. We
will solve your problemsimmediately by E-mail, fax, MSN, Skype, or telephone.

6. The English operation manual in electronic edition is included.

7. Machine has been adjusted before delivery.

8.Yuantong century is constructing oversea technical support center network, you can
contact us to find your nearest support center.


FAQ:

1) This is the first time I use this kind of machine, is it easy to operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.

2) If machine has any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours


3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name
or your detailed address. There will be best shipping freight and machine price send to you.

---
