Cbb15 Cbb16 DC Filter Polypropylene Film Capacitor for Elevator

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
CBB15 CBB16 DC Filter Capacitor
Packaging Type
Surface Mount
Capacitance
0.47μf~200μf
Structure
Fixed Capacitor
Manufacturing Material
Metallized Polypropylene Film
Usage
Low Frequency Coupling, High Frequency Coupling, Tuning, Filter, Low Frequency Bypass, High Frequency Bypass, EMI, Electric Vehicles, Welding Machine, UPS, etc
Tuning
Polypropylene Capacitor
Filter
Polypropylene Capacitor
Nominal Voltage
350VDC-1250VDC
Reference Standards
IEC61071/IEC61881
Capacitance Tolerance
±5%
Altitude
≤2000m
Remain Voltage When Put Into Operation
No More Than 10% of Rated Voltage
Maximum Allowed Voltage
No More Than 1.1 Times Rated Voltage
Maximum Allowed Current
No More Than 1.3 Times Rated Current
Working Temperature
-25ºC+75ºC
Climatic Category
40/70/21 , 40/85/ 21
MOQ
1 PCS
Delivery
7~15 Days After Payment
Transport Package
Standard Export Carton Package
Specification
Metallized Polypropylene Film Capacitor
Trademark
CSF, SaiFu
Origin
Tongling City, Anhui Province, China(Mainland)
HS Code
8532259000
Production Capacity
1000000PCS/Month

Product Description

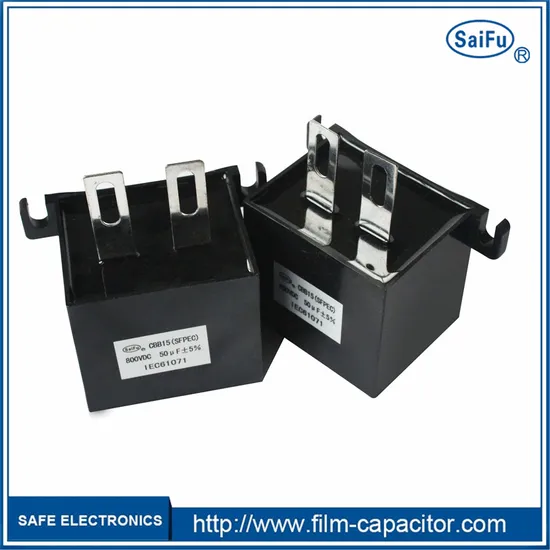

CBB15 CBB16 DC Filter Polypropylene Film Capacitor For Elevator
CBB15 CBB16 power electronic capacitor process medium is heavy edge metallized film.
The shell is flame retardant ABS/PBT and filled with epoxy resin to lead out tinned copper
electrode.
1. Production Process Flow Chart
2. Features
(1)Used to absorb or filter high-frequency impulse in high-power high -frequency switch. (2)Low ESR, high ripple current and large current shock handling capabilities (3)Low Ls, good high frequency characteristics (4)Self-healing property (5)Long lifetime (6)Plastic case, resin sealing
3. Applications
(1)Used in filter, absorption, blocking, resonance circuits of high-frequency switching power supply. (2)Widely applied to EMI, such as high frequency welding inverter, UPS, electric vehicles, etc..
4. Technical Specification
Cn
(μF)
Un
(V)
Imax
(A)
dv/dt (V/μs) Ls
(nH)
U t-t
(V)
U t-c
(V)
tgδ
(20ºC,10kHz)
Size
(mm)
CBB15(SFPEC)
0.47 1200VDC 7 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 46×18×34
1 1200VDC 15 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 46×34×36
2 1200VDC 25 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 50×46×50
3 1200VDC 35 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 50×46×50
30 1250VDC 30 200 ≤10 1800V, 10S 3000VAC,60S ≤100×10-4 74×46×49
40 1250VDC 40 200 ≤10 1800V, 10S 3000VAC,60S ≤100×10-4 75×50×44
CBB16(SFPEC)
2 500VAC 25 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф63×49
3 500VAC 35 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф63×49
4 500VAC 50 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф63×49
5 500VAC 60 1300 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф63×49
6 500VAC 80 1400 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф76×49
10 1400VDC 6 200 ≤10 1800V, 10S 3000VAC,60S ≤30×10-4 ф50×60
20 1400VDC 10 200 ≤10 1800V, 10S 3000VAC,60S ≤30×10-4 ф50×60
50 350VDC 14 200 ≤10 600V, 10S 3000VAC,60S ≤30×10-4 ф50×60
40 800VDC 10 200 ≤10 1200V, 10S 3000VAC,60S ≤30×10-4 ф40×60
60 800VDC 15 200 ≤10 1200V, 10S 3000VAC,60S ≤30×10-4 ф50×60
100 800VDC 28 200 ≤10 1200V, 10S 3000VAC,60S ≤30×10-4 ф62×60
200 800VDC 26 200 ≤10 1200V, 10S 3000VAC,60S ≤30×10-4 ф60×110

Note: Other specifications and size outside table are negotiable.
5. Production Equipments
6. Product Certifications
7. R & D Patents
8. Honors Our Company Has Received
9. Geographical Advantage
Thirteen minutes to reach "G50 ShangHai-ChongQing Expressway"
10. FAQ
Q1. Are you a manufacturer? Yes, we are professional capacitor manufacturer and have specialized in this industry for decades. Q2. What is the specification of CBB15 CBB16 dc filter capacitor? Capacity: 0.47μF-200μF Voltage: 350VDC-1250VDC Q3. How do you ensure your quality? Our products have obtained CQC, TUV, UL, CE and other relevant certifications, in compliance with
RoHS and REACH directive requirements. Q4. Can you provide samples? Yes, we can provide samples for testing. Q5. Can your product be customized? Yes, we can customize products according to customer's requirement.
