2024 High Speed Cold Heading Machine for Drywall Slotted Head Self Tapping Screws

Product Description

Product Description

PROLU	Screw Cold Heading Machine(380V)
Item	1	2	3	4	5	6
Model	JYX15-30GA	JYX15-37G	JYX15-50G	JYX15-63G	JYX15-76G	JYX15-100G
Max.blank diameter (mm)	2.3-5.2
Max.blank length (mm)	25	40	55	65	80	110
RPM (pcs/min)	260	220	200	155	140	105
Main die diameter (mm)	34.5×55	34.5×55	34.5×67	34.5×70	34.5×90	34.5×110
1st punch die (mm)	27×70	31×73				31×90.5
2nd punch die (mm)	25×70	31×73				31×98.8
Cut-off die (mm)	19×35
Cutter (mm)	10×32×63
Motor power (KW)(4HP)	4	3		2.2
Oil pump power (KW)(1/4HP)	0.33
Machine size (M³)	2.4×1.2×1.45	2.1×1.05×1.1	2.1×1.05×1.1	2.15×1.1×1.1	2.15×1.1×1.1	2.3×1.1×1.1
		2.25×1.2×1.45	2.25×1.2×1.45	2.25×1.2×1.45	2.25×1.2×1.45	2.5×1.2×1.45
Weight (KG)	2300	2200	2200	2250	2250	2350
		2300	2300	2350	2350	2450
Attach:1. Machine including wire straightener and wire stand. 2. Protection:half or full.3. Need auto checker, conveyor or inverter, please consult.
Machine Feature:
*Vertical sliding plate,widen and thicken, bigger size . entirety quench. Slide stabilization.
*Sliding block, cast alloy steel
*Mould pedestal, high processing accuracy.
*Pull rod,spring pedestal,straight line pedestal,knife rest pedestal, precision cast steel
*Install sliding block baseplate,shock absorption,antiwear,lengthen using life.
*Oil line reasonable layout, lubricate all parts.
*Curve sliding plate, entirety, without insert.
*Crankshaft,high strength and toughness,antiwear alloy steel,widen and thicken.
*Lifting transmission plate,cutting by laser cutting machine.impact toughness well, high strength.
*Second axle cam, control the accuracy 3%-5% millimeter
*Auto stop without lubricating oil
*Taiwan Electrical motor
*Main electric circuit: French brand

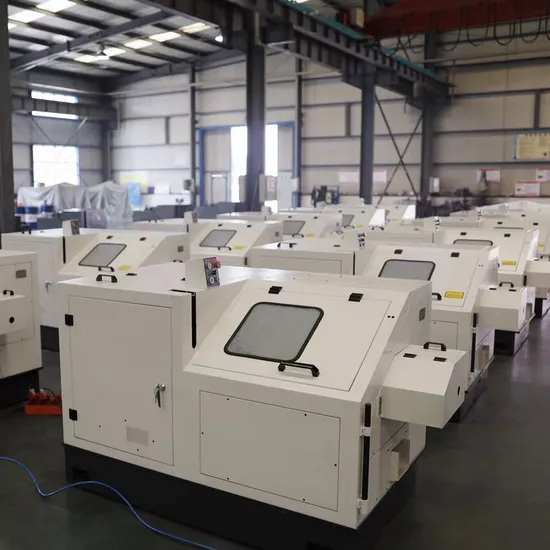

JYX15-30GA Provide full protection.JYX15-37G-JYX15-100G,We offer two types of protection

Half protection (left), full protection (right)
*Reasonable layout of oil circuit, full coverage of oil supply and lubrication for all components of the whole machine
*Lift transmission plate, overall steel plate cutting, good impact resistance, high strength
*Two axis cam, with machining accuracy controlled within 3-5 threads
*Curved skateboard, integrally formed, without installing inserts
*Vertical skateboard, widened and thickened, overall quenched, stable sliding
*Sliding block, cast from alloy steel. Die holder, high processing accuracy
*Pull rod, spring seat, linear seat, tool holder seat, precision cast steel
*Add slider base plate, shock absorption, wear resistance, and increase slider service life
*Crankshaft, made of special high-strength, high wear-resistant alloy material, widened and enlarged
*Automatic oil shortage shutdown
*Electric motor, Takasaki, Taiwan
*Main circuit, Schneider

We can provide you with high-quality technical service capabilities

---Total 16000 square meter,workshop 10000 square meter, office area 1000 square meter,4 spare parts warehouses, 7 workshops
---R&D team:27 engineers,spare parts process team:80 workers and machine assembly team:40 workers

---30 lathe,12 high precision CNC lathe,17 middle-size CNC center of lathe,2 large-size CNC center of lathe

---95% self-produce spare parts of steel ball and screw cold heading machine,independent research

high-precision process,quality guarantee

Company Profile
Tianjin Bell Technology Co., Ltd is a leading company located in the Binhai district of Tianjin, China. Situated in one of the biggest hardware markets in the North of China, our company has established a strong presence in the industry since our first factory was set up in 2013. We take pride in our commitment to quality and innovation, ensuring that our products meet the highest standards in the market.
Our formal establishment has allowed us to expand our operations and reach a wider customer base. With a focus on customer satisfaction and continuous improvement, we strive to provide top-notch products and services to our clients. Our team of dedicated professionals works tirelessly to ensure that every product that leaves our factory is of the highest quality.
At Tianjin Bell Technology Co., Ltd, we are dedicated to providing our customers with the best hardware solutions available in the market. Our commitment to excellence and customer satisfaction sets us apart from the competition, making us a trusted partner for all your hardware needs.

We can also provide you with high-quality fastener products

FAQ
1. -Can your machinery produce non-standard parts?
-Yes, we can. Our machinery can produce non-standard parts, at the same time,we can also customize according to your parts drawings.
2. -Does your factory have customers in our country?
-We have rich experience in export. Europe, Asia, Africa, North America, South America, Oceania, all have our customers.
3. -Can you provide debugging video and samples?
-Sure. We will update the information (photos, videos, etc.) with you during and after debugging, and send samples. The shipment will be arranged only after you confirm it is correct.
4. -Can you arrange the delivery time according to the contract?
-Of course. We will deliver the goods to you as soon as possible on the basis of the contract. It will not affect your use.
5. -If it is beyond the warranty period, can we check the technical problems with you?
-Must will. What we provide is a lifetime service, no matter what time, what problem, we are willing to help you.
Looking forward to communicating with you!

---
