Eg8143A5 Fiber Modem Gpon Ont CATV 1ge 3fe 2.4G WiFi ONU Gpon ONU 8143A5 FTTH Modem

Product Description

Product Description GPON ONU EG8143A5 2.4GHz 1GE+3FE+1TEL+1USB+1CATV Optical Modem English Firmware WIFI Modem
The EG8143A5 is a routing-type ONT in the all-optical access solution.It uses the GPON technology to implement ultra broadband access for users.
It provides 1*GE+3*FE+1*POTS+2.4G WiFi+1*CATV that ensure the user experience of WiFi, voice, data CATV and HD video services.
Product Parameters

Dimensions (H x W x D)	340 x 175 x 115 mm
Weight (Without power adapter)	Approximately 235 g
Operating Temperature	0-40°C
Operating Humidity	5%-95% RH (non-condensing)
Power Adapter Input	100-240 V AC, 50/60 Hz
UNI	1 x GE, 3 x FE, 1 x POTS, 1 x Wi-Fi (2.4G), and 1 x CATV
NNI	1 x GPON
Maximum Power Consumption*	8.2 W
Maximum PoE Output Power	NA
Surge Protection	GE port: common mode 4 kV; differential mode 0.5 kV AC power supply: common mode 6 kV; differential mode 6 kV
Installation Mode	Desktop
Compliance Certification	CE
GPON Port	Connector: SC/APC Class B+ Receiver sensitivity: -27 dBm Overload optical power: -8 dBm Type B single-homing Type B dual-homing (supported in Layer 2 forwarding)
Ethernet Electrical Port	Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning
POTS Port	Maximum REN: 4 G.711A/μ, G.729a/b, and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (complies with the SIP protocol)
WLAN	IEEE 802.11 b/g/n (2.4G) 2 x 2 MIMO Antenna gain: 2 dBi WMM Multiple SSIDs WPS Air interface rate: 300 Mbit/s

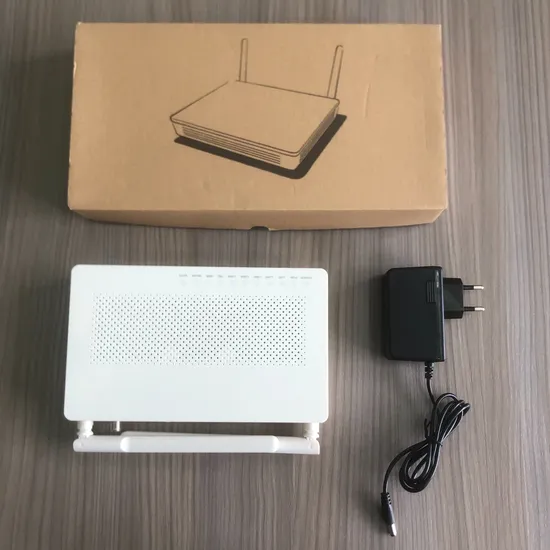

Detailed Photos Company Profile Anhui Zhuhuai Import and Export Trading Co.,Ltd. is committed to promoting the development of global optical fiber, optical cable and switch trade. We have a team of energetic and passionate professionals, adhering to the values of "Integrity, Innovation, Interconnection and Progress", with the vision of "Linking the World, Boda World". Our business covers intelligent buildings, overseas optical fiber, fiber optic cables and switches. We always adhere to the customer demand-oriented, through innovation and excellent quality, to provide customers with the best service. Our products are exported to many countries and regions such as Africa and Southeast Asia, and are highly trusted and praised by our customers.
Our business field covers the research, development, production and sales of fiber optic cables as well as switches. Among them, fiber optic cable products include fiber optic cables, fiber optic patch cords, fiber optic adapters, etc., and switch products include Ethernet switches, POE switches, etc.. These products are widely used in the network construction of telecom, mobile, Unicom and other carriers; not only that, but also in the network upgrade and transformation of government, enterprises, schools and other organizations often use our products.
FAQ Q: Are you a factory or trading company? A: we are a manufacturer & trading company Q: How to proceed an order for the products? A:Firstly,let us know your requirements or applications;
Secondly,we quote according to your requirements or suggestions;
Thirdly,customer confirms the samples and places deposit for formal order;
Lastly,we arrange the production. Q: Whats your main products? A:Outdoor fiber optic cables;indoor fiber optic cables;FTTH Drop cables ;ADSS; indoor armored patch cords fiber cable SC/LC/FC/ST;MTP/MOP optical patch cord. Q: Do you have certificate for raw material A:We build long term relationship cooperation with quality ISO9001,ROHS raw material supplier. Q: What's your products' advantages? A:Good quality and competitive prices. Strictly quality control when producing.
Professional team work, from design, development, producing, assemble, packing and shipping.Good after-sale service.
Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods. Q: What payment method do you accept? A:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc. Q: What is your delivery time? A:7-15 days for common fiber cables, 10-20 days for your customized requirements. Q: Do you accept OEM,ODM? A:Yes, we accept them .

---
