CNC Metal Lathe Qk1319 Alloy CNC Lathe Processing

Product Description

Product Description

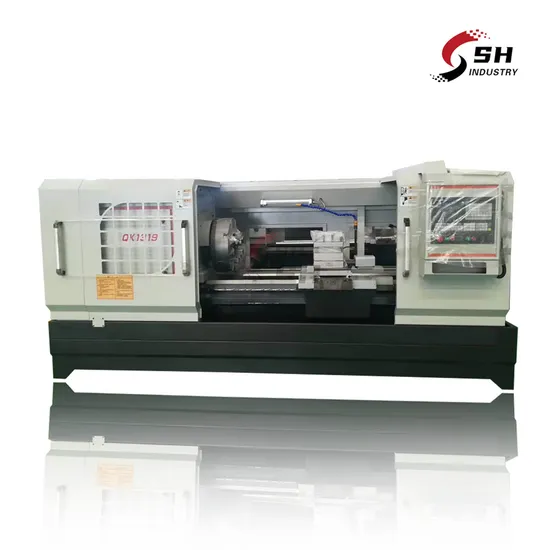

CNC Metal Lathe Qk1319 Alloy CNC Lathe Processing
We are the most professional in making cnc pipe thread lathe
Product Parameters

Technical Specifications	SPECIFICATION	Units	QK1319
	Swing over bed	mm	630/800
	Swing over cross slide	mm	340/520
	Distance between centers	mm	1000/1500/3000
	Pipe threading range	mm	50-193
	Guideway width	mm	550
	Max. load capacity	T	3
	Spindle bore	mm	200
	Spindle speed steps	-	VF. 4 steps
	Spindle speed range	rpm	20-550
	Chuck	mm	φ500 3-jaw manual
	Turret/tool post	-	CNC turret 4 position
	Tool shank size	mm	32 x 32
	X axis travel	mm	320/420
	Z axis travel	mm	850/1350/2850
	X axis rapid traverse	mm/min	4000
	Z axis rapid traverse	mm/min	6000
	Tailstock quill diameter	mm	φ100
	Tailstock quill taper	-	MT5
	Tailstock quill travel	mm	250
	Main spindle motor	kW	11
	Coolant pump motor	kW	0.125
	Weight for 1000	kg	4600
	Weight for 1500	kg	5100
	Weight for 3000	kg	6100
	Dimension for 1000	mm	3300x1880x1850
	Dimension for 1500	mm	3800x1880x1850
	Dimension for 3000	mm	5300x1880x1850

The main performance characteristics:
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to relize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Carriage and guide way contact surface pasted with Turcite B to maintain long-term accuracy.
Application:
CNC Heavy Duty Oil Pipe threading lathe machine is mainly designed to process all kinds of internal and external pipe threads including metric,inch,module,DP and taper threads,as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks.
This series lathe machine is widely used in industries including petroleum exploiting,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing
drilling pipe,drilling rod,thread coupling and so on.
Standard Accessories:
GSK980TC CNC system,NC turret 4 position,Coolant system,Lubrication system,Lighting system,,Manual tailstock,Chuck,Rear support bracket, Pad iron etc.
Optional Accessories:
CNC system(Simens,Fanuc,GSK,KND),Turret(Servo,hydraulic,power),Chip conveyor,Air conditioner,Full-shield,Hydraulic tailstock,Chuck,Center rest,Follower rest,Signal light,Grinding attachment etc. Realistic photos

Detailed Photos

Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
