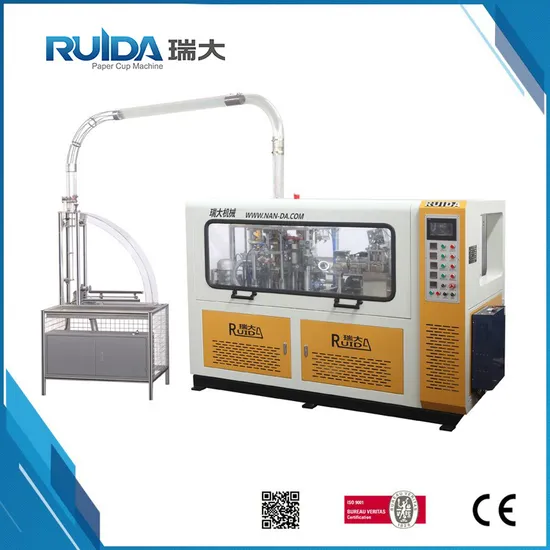

Automatic Biodegradable High Speed Paper Cup Making Machine

Product Description

The High-Speed Paper cup machine comes with two turn plate, open intermittent indexing cam mechanism and gear transmission, longitudinal axis structures.
The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly. Cup body and bottom are sealed by ultrasonic and hot device. Cup top curling has two steps, rotary curling and heating figuration, which makes the curling more stable and better appearance. The machine comes with PLC control system, photoelectric failure detecting, and can stop working automatically if the machine has any problem, it can greatly improve operation safety and reducing labor cost. The machine can finish the whole process including paper feeding, side sealing, cup bottom punching and feeding, heating, knurling, cup-top curling, cup collection.

Features PLC control, touch screen operate High speed up to 130 cups/min Simple forming station and minimum stroke 2 piece of Hot air station for cup body and also 2 piece for bottom sealing (hot air device is imported from Switzerland). Have an automatic cup delivery system with counter. It's easy to make different size of cups by changing the mold. With automatic lubrication system. Easy operation. Easy maintenance. Less noise. Product Description

Model	RD-12/22-100A
Cups Specifications	6-16OZ 16-22OZ
Cup Top Diameter	65mm-92mm
Cup Height	60mm-70mm
Cup Bottom Diameter	50mm-65mm
Cups material	Single PE/Double PE coated paper (Any one can be)
Paper Specifications	210-380g/m²
Speed	90-100 pcs/min
Weight	3600kg
Gas source	0.4m³/min
General Power	10Kw
Power supply	220v/380v, 50Hz
Packing Dimensions	2730*1660*1800mm(L*W*H)
Port	Ningbo/Shanghai
Shipping details	By sea/air,according to customers' requirements.
Cup Use	Round paper cups, drinking , noodle and vending cups ice-cream and food containers
Other Products	Paper cup machinery,die cutting machine,paper cup forming machine,cup top flatten machine and other products.

---
