Product Details
Product Description
Product Description
Features
Novel streamlined design, high-end atmosphere, otherworldly.

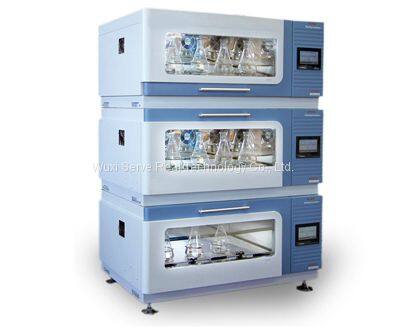

The maximum three-layer stacking combination method takes up less space and can effectively use the laboratory space; each layer is independently controlled, and different temperatures and rotation speeds can be set.
Using the upside-down opening method and the pull-out tray, which is convenient for loading and unloading the shaker bottle.
High-quality stainless steel mirror studio, easy to clean and anti-corrosion. Electrostatic spray plastic shell, durable.
Novel design of the centrifugal circulating air duct, which forces the air in the working room to flow, guarantee more uniform of temperature.
Hollow tempered glass door, easy to observe the internal situation. The elastic pressure ventilation hole design meets the oxygen demand of the sample.
Imported fluorine-free refrigeration compressor, novel design of refrigeration working mode.
Controlled by high-quality servo motor, accurate rotation number is measured, longer service life, maintenance-free.
Using high-precision 16-bit true color touch screen computer control system. All function displays and set values are displayed on the same interface, making observation more intuitive.
Has fixed value operation mode and programmable mode, makes it a multi-purpose equipment.
Real-time curves and historical curves can be drawn, and screenshots can be printed; historical data can be saved for up to 1 year.
The backup or printout can be exported by U disk; the measurement data can be printed in real time in the form of data or curve.
With timing function, the time setting range is 0~999.9 minutes (hours).
With power-off memory function to avoid data loss due to power-off and crash.
With over-temperature sound and light alarm, automatic power-off function. With fault self-diagnosis function.
With door control function, the door will automatically stop rotating.
Optional functions
1. Remote monitoring on mobile phone APP
2. Micro-printer to print data and curves
Advantages
Integrates full-temperature shaking culture and light culture functions. Can be used for static culture or dynamic culture.
LED combination full spectrum design, multi-level adjustable light intensity, high efficiency and energy saving, high efficiency, longer service life;
Especially equipped with an external ambient temperature probe, the ambient temperature is displayed on the panel in real time, which is convenient for precise control of the temperature inside the box.
With encrypted functions of operation interface to ensure operation security, and all control functions are locked regularly.
Control system integrates lighting and ultraviolet sterilization functions, convenient for observation and sterilization.
Unique multiple waterproof design:
1: The bottom of the inner tank is designed with a waterproof baffle, which can prevent a small amount of liquid from flowing into the lower chamber, and ensure that the broken container debris will not enter the lower chamber. Easy to clean up.
2: Using high-quality waterproof motor, the motor will not be damaged by liquid leakage.
3: The lower bin is designed with a drain port to prevent the liquid from accidentally flowing into the lower bin and can also be discharged
Specifications
Product name
| Precision stackable full temperature illuminated shaking incubator
|
Model
| PY-ZGD228
|
Standard control system
| LCD(16-bit true color touch screen) 7-inch touch screen
|
Oscillation frequency
| 30-300rpm
|
Oscillation frequency accuracy
| ±1rpm
|
Rocker amplitude
| Ф26mm
|
Temperature control range
| 4~65℃
|
Temperature resolution
| 0.1℃
|
Temperature uniformity
| ±0.3 （at 37℃）
|
Control method
| PID microprocessor
|
Light intensity
| 0-16000LX Multi-speed adjustable (standard) / up to 0-30000LX multi-speed adjustable (optional)
|
Shaker size (mm)
| 850×530
|
The maximum capacity of a single layer (ml × branch)
| 100×95;250×56;500×38;1000×22;2000×12
|
Single-layer standard capacity (ml × branch)
| 100×45;250×28;500×28;1000×18 ;2000×9
|
Timing range
| 0~999.9mins（hrs）
|
Single layer power (kw)
| 1.5
|
Power supply
| AC220±10% 50~60Hz
|
Single layer dimensions
| 1368×900×600
|
Single pack size
| 1500×1026×860
|
Net weight of single layer (kg)
| 220
|
>>
