High-Performance Mullite Cordierite Extruded Batt for Industrial Use

Product Description

Product Description Product Parameters

Mullite Cordierite Technical Data
Category			CUA	CEN	REN	REC	EAY	AUK	TOB
Chemical Composition	Al2O3	%	40	41	36	39	41	43	46
	SiO2	%	49	48	52	49	47	46	44
	MgO	%	6.5	7.0	7.0	8.0	7.0	7.0	6.0
Bulk Density		g/cm3	1.95	1.90	1.85	1.82	1.95	1.82	2.00
Apparent Porosity		%	26	28	28	29	26	33	25
M.O.R.@ 20ºC		Mpa	14	13	16	10	13	15	18
M.O.R.@ 1250ºC		Mpa	14	13	10	11	15	15	17
C.T.E.@ 20ºC--1000ºC		10-6K-1	2.3	2.3	2.6	2.2	2.2	2.5	3.1
Specific Heat @ 20ºC		Kj/Kg·K	1.0	1.0	1.0	1.0	1.0	1.0	1.1
Thermal Shock resistance		★	★★★★	★★★★	★★★	★★★★	★★★★	★★★★	★★★
Max Working Temperature		ºC	1300	1250	1250	1320	1250	1280	1350
Remark: Data of properties listed above are typical results from test pieces and therefor should be used only as guidance.

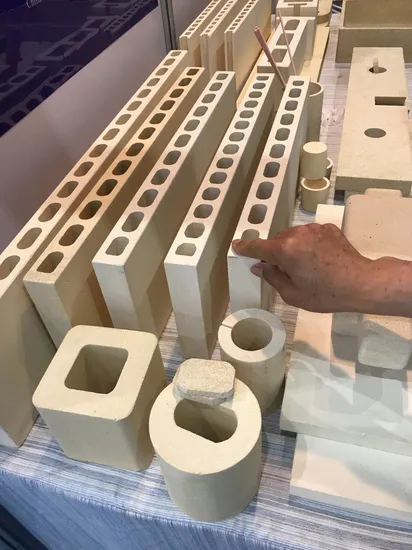

Extruded batt have holes running the length of the cross sectionand are manufactured using high pressure vacuum extrusion, before being cut and surface-ground to guarantee the highest standard of flatness and dimensional accuracy. Our extruded batts are now amongst the leading products in Asia, and are of a better quality than similar products made in China. They are used mainly in the sanitary ware and glass panel industries, but can be found in a number of applications including the biscuit and glost firing of tableware. Detailed Photos Our Advantages

No	Point of advantage	Advantage can lead to:
1	Excellent thermal conductivity	Make your ceramic in excellent quality
2	More Clean than other materials	Easy to maintain your kiln production line.
3	Saving more energy	Reduce your cost.
4	Competitive Price	Save your cost

We use the most advanced European energy-saving refractory kiln furniture production technology and quality control standards, the main equipment is the kiln furniture industry's most advanced production equipment, including 3 automatic raw material mixing line, 12 set of 30-2000 tons hydraulic automatic double-sided pressuring molding machine, 3 sets of high-voltage vacuum extrusion system, 1 pressure grouting line, 3 set of 20m³ automatic temperature shuttle kiln, up to 2019, we will have 2 more automatic tunnel kiln; molding methods semidry pressing, plastic pressing process , high-voltage vacuum extrusion molding, pressure grouting, ramming molding production of various shapes of cordierite - mullite refractory saving kiln furniture products, Can reach annual output 1000 ton.
Packaging & Shipping

---
