High pressure thermoset plastic laminated insulation g10 fr4 sheet

Product Description

Product Description

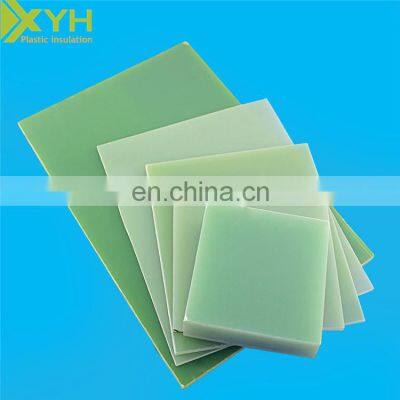

Product DescriptionHigh pressure thermoset plastic laminated insulation g10 fr4 sheet
Epoxy Glass Fabric Laminate FR4 has high mechanical properties and dielectric properties, good heat resistance and mechanical processing, and low water absorption not easy deformation. Flame-retardant grades of up to UL94V0 level.
Mainly used as electrical insulating structures, PCB drilling bottom backup plate, etc.
Color: Shallow green, yellow
Specifications: 40 " 48", thickness and tolerances according to customer requirements. Thickness range: 0.08-100mm

NO.	Test Items	Unit	Standard Data	TEST Result
1	Outside	-	< 70	< 70
2	Thickness	MIL	CLASS M	58.52 -59.54
3	Volume resistance	MΩ . cm	≥ 10 6	5.3*10 6
4	Surface electric strength	MΩ	≥ 10 4	4.3*10 5
5	Dielectric loss tangent	-	≤ 5.4	4.6
6	Well injectivity	%	≤ 0.8	0.24
7	Tg Value (DSC)	& deg; C	Tg≥ 130 Δ Tg≤ 5	Tg 1 = 134.40 Δ Tg = 1.40
8	Heat Stress	-	288 C put in tin 20' s	No bubble, No delamination

Features and Benefits:
1. High dielectric strength
2. Radiation resistant
3. High tensile strength
4. Low cold flow or creep
5. Chemically resistant
6. Dimensional stability
7. Low dissipation factor
8. High impact strength
Application:
1. Electrical equipment
2. Aerospace conditions
3. Rocket cases
4. Antenna insulators
5. Test boards
6. End plates
7. Cryogenic insulation
8. Terminal boards
Do you need machining service ?
1. Professional engineering team quote for you
2. Professional machining machine customize for you
3. Professional Sample supply you to confirm quality
Our Factory
Our Company
Shenzhen Xiongyihua Plastic Insulation Limited was established in 2006 in Shenzhen, after more than decades of continuous efforts , has developed into a professional integrated manufacturer of specializes in production and development Engineering Plastic and Insulation Plastic ,is the most complete varieties. We have automatic dipping production lines, CNC carving machine and laser engraving machine, along with several saws, milling, planing,grinding, drilling, tapping, punching, cutting and other machining large production equipment.
Our main products :
1.Insulation Plastic Series : 3240/FR-4/G10 Epoxy Fiberglass ,Bakelite,3025 Phenolic Cotton Cloth Laminated,3021 Phenolic Paper Laminated,High Voltage Insulation Plastic.
2.Engineering Plastic Series: PA6/MC Nylon ,POM, PTFE,PVC,PE,PU,Acrylic,ABS and so on.
3. Insulation Machining Parts Series : Customized according to the customers’ drawings and designs,welcome to contact us for more details.
Our well-equipment facilites and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
As a result of our products and outstanding customer service, we have gained a global sales network reaching India, Vietnam, Thailand, Indonesia, Philippines, Malaysia, Turkey, Pakistan, Dubai, and some other countries from European, like Brirain, France and German. And America, Australia, etc,enjoying great reputation in plastic industry.
If you are interested in doing business with us, freely send your inquiry and warmly welcome to visit our website to check more information and products details.
Our experienced and knowledgeable staff will meet your needs and exceed your expectations.
Company Website:https://xiongyi888.en.china.cn/
Our Service
1,Can provide free sample, only need you bear the sample fee.
2,Supply free exporting packing to protect your ordering .
3,Supply free replacement if unsatisfactory material quality .
4,Supply good after-sales service, we will follow-up the situation after using, if have problems,we will find out the reason and deal with positively.
FAQ
1,What is the minimum ordering quantity ?
MOQ can be a small quantity even 10 kgs to meet various needing .
2,Can we order mixed thickness for one order ?
Yes, We could match your ordering request even mixed different thickness and colors .
3,What are your design capabilities?
We have staff trained in AutoCAD and several design programs. We can work with many different file formats, as well as develop designs based on sketches, drawings, blueprints and other formats.
4,How can I get a sample?
A: Normally small samples (sizes not larger than 150*150mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL,FEDEX,TNT,UPS courier account number to us. For bigger sizes, it depends.
Our Team
Why choose us?
♥Here is a professional manufacturer in this field over 11 years
♥With the strong factory strength, builded foreign branch company (wareshop)on Vietnam
♥Keeping aim :Best quality, Pirce, Guarantee and Long Term Relationship
♥We value the cooperation with customers, clients trust us!
