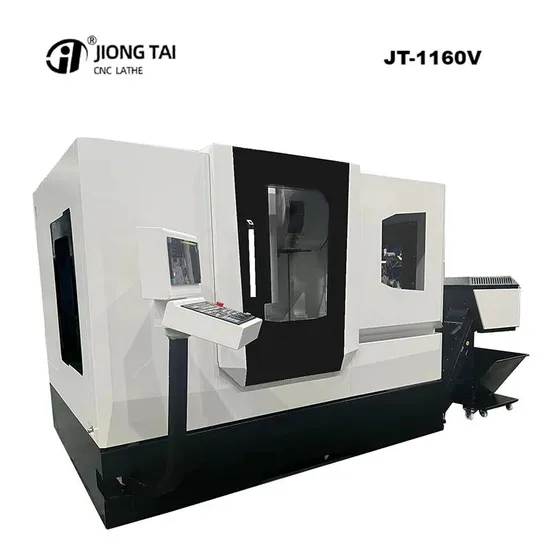

| ITEM | UNIT | JT-1160V |
| Workbench | Workbench size | mm | 1240*610 |
| Worktable load-bearing capacity | kg | 1000 |
| T-slot width (width x spacing x number of slots) | mm | 18*125*5 |
| Trip | X-axis travel | mm | 1100 |
| Y-axis travel | mm | 650 |
| Z-axis travel | mm | 650 |
| Distance from spindle end face to workbench | mm | 120-770 |
| Distance from spindle center to Z-axis rail surface | mm | 650 |
| Principal axis | Speed range | rpm | 10000 |
| Main spindle power (continuous/30 minute rated) | kw | 11/15 |
| Spindle torque(rated for continuous/15minutes) | Nm | 52.5/95.5 |
| Slope of spindle inner hole | | BT40 |
| Transmission mode | | Direct-type |
| Feed | X-axis rapid displacement | m/min | 30 |
| Y-axis rapid displacement | m/min | 30 |
| Z-axis rapid displacement | m/min | 30 |
| Feed rate | mm/min | 15000 |
| Automatic tool change system | Tool magazine capacity | set | 24 |
| Maximum tool outer diameter (when fully loaded) | mm | 80 |
| Expanding the diameter of the hollow blade | mm | 150 |
| Maximum tool length | mm | 300 |
| Maximum tool weight | kg | 8 |
| Tool change time (knife to knife) | sec | 24 |
| Precision VD13441 (JISB6338) | Positioning accuracy | mm | P0.012(±0.004/300) |
| Repetitive accuracy | mm | Ps0.001(±0.003) |
| Other | Electricity dernad | Kva | 25 |
| Barometric pressure demand (minimum) | kg/cm² | 6 |
| Cuting fluid capacity | liter | 300 |
| Machine footprint | mm(approximately) | 2900*2600 |
| Machine height | mm(approximately) | 2830 |
| Machine weight | kg(approximately) | 7500 |
