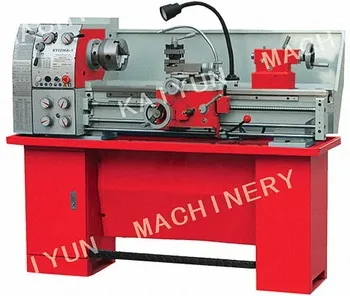

Conventional Mini Bench Gear Head Precision Metal Lathe Machine with CE Horizontal Gap-Bed Lathe (KY1230A-1/KY1236A-1)

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
KY1230A-1/KY1236A-1
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Color
Red
Spindle Bore
38mm
Top Slide Traver
76mm
Swing Over Bed
310mm
Swing Over Gap
450mm
Cross Slide Traver
175mm
Net Wight
510/609kg
Motor
1.1kw/1.5kw
Digital Readout
1 Set
Taper of Spindle Bore
Mt5
Transport Package
Wooden Case
Specification
CE
Trademark
KY
Origin
China
HS Code
84589900
Production Capacity
6000 Pieces/Year

Product Description


Features
1.Super frequency hardend and precision ground bedway.
2.D1-4 spindle is supported by high quality tapered roller bearing.
3.Hardened,precision ground gears in headstock.
4.High precision chuck.
5.Gap bed section provided for larger diameter work.
6.Gearbox has large feed and threading fuctions.
7.Independent leadscrew and feed rod.
8.Carriage mounted spindle control lever.
9.Adjustable gibs for slideways.
10.Automatic feed and threading are fully inter locked
11.Tailstock may be offset for turning tapers.
12.Equipped with emergency stop button,load switch.

Specifications

Max.Swing over bed		 310mm

Max.Swing over cross slide		 180mm

Max.Swing in gap		 450mm

Distance between centers		 750/910mm

Spindle bore		 38mm

Taper of spindle bore		 M.T.#5

Range of spindle speed		 65-1810rpm.(18steps)

Range of longitudinal feeds		 0.0527-1.2912mm/rev

Range of cross feeds		 0.011-0.276mm/rev

Range of metric threads		 0.4-7mm

Range of inch threads		 4-60Tpl

Max.Size of tool shank		 14x14mm

Taper of tailstock bore		 M.T.3

Power of motor		 1.1kw/1.5kw

Packing size		 1480/1700*750*1450mm

Net weight		 510/609kg

Standard Accessories

3-jaw chuck		 1 pc

4-jaw chuck & backplate		 1 set

Face plate		 1 pc

Steady rest		 1 set

Follow rest		 1 set

Splash guard		 1 set

Stand & oil tray		 1 set

Change gears		 1 set

Dead center MT3		 1 pc

Optional Accessories

Working lamp		 1 pc

Quick change tool post		 1 set

Turning tools		 1 set

Coolant system		 1 set

Foot brake system		 1 set

Live center		 1 pc

Digital readuot		 1 set

Lead screw cover		 1 set

Drill chuck		 1 set
