Made in China Lab Two Roll Open Mixing Mill Machine

Product Description

Made in China Lab Two Roll Open Mixing Mill MachineProduct Description
· Tailored structure,stable performance, easy to operate.
· There are varied speeds and fraction ratios available, which can satisfy most customers' formula and processing requirements.
· Frame, frame cap and base, looking very nice, are welded and treated by annealing for stress relieving.
· Chilled alloy cast iron roll is abrasion resistant with long service life.
· The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
· Perfect emergency stop device can ensure the safety of personnel and equipment.
· The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
· Stock pan is easy to clean up with dislodging device.
· Human nature designed operating system reduces labor intensity.
· Modular structure offers various structures for customers' option.
· The flexible design system can satisfy customers' special design requirements within the shortest time.
· A load test running will be made to the assembled equipment in our company to save debugging time for customers.
Technical parameters

Model		X(S)K-160	X(S)K -250	X(S)K -360	X(S)K -400	X(S)K -450	X(S)K -550	X(S)K-660
Diameter of rolls		160	250	360	400	450	550	660
Working length of roll		320	620	900	1000	1200	1500	2130
Working speed of front roll		8.95	14.9	17.4	19.3	23.1	28.6	30
Fraction ratio of rolls		1:1.35	1:1.1	1:1.27	1:1.27	1:1.27	1:1.29	1:1.05
Max.gap(mm)		5	8	10	10	10	15	15
Nip regulating mode		Manual	Manual	Manual	Manual or Electric	Manual or Electric	Manual or Electric	Electric
Batch capacity(Kg)		1-2	10-15	20-15	25-35	30-50	50-60	120-140
Motor	Power	5.5	15	30	45	55	90/110	180
	Motor speed(r/m)	1440	730	980	740	980	740	740
Reducer		Full closed type hardened gear speed reducer
Reduction ratio		43	35	49.7	38	47.2	35.6	126.2
Overall dimension (mm)		1120x920 X1295	3400x1270 X1620	4140x1770 X1700	4490x1700 X1750	5570x1900 X1750	6290x2330 X1780	7500x 2630x2060
Weight (kg)		1100	4200	7600	9000	11500	20000	26500

Remarks: all information above is only for reference; please gather the exact data by contacting us.Picture For Reference

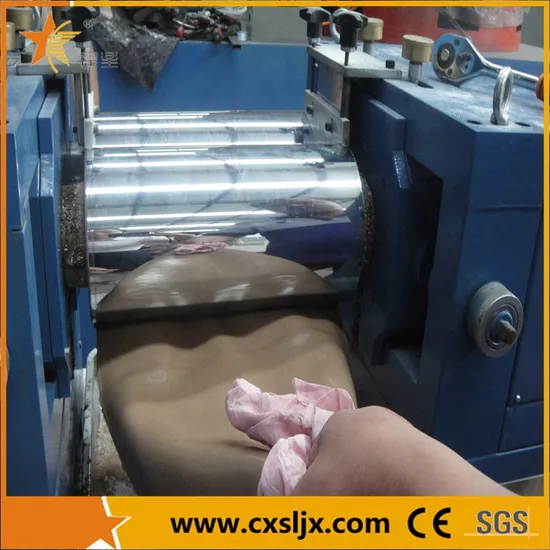

1.Machine Display:
2.Factory Display:
3.Other Hot Sale Product:
Company Profile
Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company.
Chenxing is willing to work with you to create a future together.
FAQ
Our service:
1.Ability to provide the customized plastic extrusion solutions;
2.Complete sales system covering the pre-sales, sales and after service jobs;
3.Commissioning & installation service in customer plant .
FAQ:
Q. After-sales service
A: Send engineers to install, test the machines and offer technology guidance and worker training at customers' factory.
Q: Your company is a trading company or an industrial manufacture factory?
A: We are an industrial manufacture factory. We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Questions for Buyers
Please offer the following information,so we can give you price and our advice as manufacture:
1.The specification of this open mixing mill(such as length,diameter)?
2.The raw material?(PVC or rubber)
2.The voltage?
CONTACT US:
If you need to know more information about our company or our product,welcome to contact us and visit our factory!Our company hope to cooperate with you to create a better future! ! !

---
