Basic Info.
Model NO.
OSG65R038HZAF TO247
Characteristics
Excellent Stability and Uniformity
Trademark
Orientalsemiconductor
Production Capacity
20kkkk/Monthly

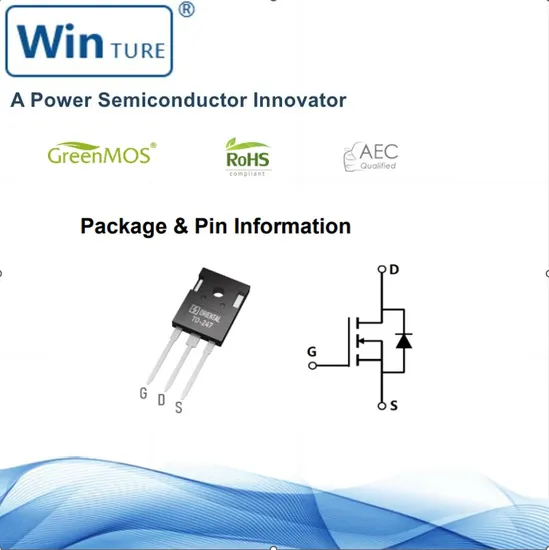

Product Description
General Description
The GreenMOS® high voltage MOSFET utilizes charge balance technology to achieve outstanding low on-resistance and lower gate charge. It is engineered to minimize conduction loss, provide superior switching performance and robust avalanche capability.
The GreenMOS® Z series is integrated with fast recovery diode (FRD) to minimize reverse recovery time. It is suitable for resonant switching topologies to reach higher efficiency, higher reliability and smaller form factor.
Features Low RDS(ON) & FOM Extremely low switching loss Excellent stability and uniformity Ultra-fast and robust body diode
Applications PC power Telecom power Server power EV Charger Motor driver
Key Performance Parameters
| Parameter | Value | Unit |
| VDS, min @ Tj(max) | 700 | V |
| ID, pulse | 240 | A |
| RDS(ON), max @ VGS=10V | 38 | mΩ |
| Qg | 175 | nC |
Marking Information
| Product Name | Package | Marking |
| OSG65R038HZF | TO247 | OSG65R038HZ |
Absolute Maximum Ratings at Tj=25°C unless otherwise noted
| Parameter | Symbol | Value | Unit |
| Drain-source voltage | VDS | 650 | V |
| Gate-source voltage | VGS | ±30 | V |
| Continuous drain current1), TC=25 °C | ID | 80 | A |
| Continuous drain current1), TC=100 °C | 50 |
| Pulsed drain current2), TC=25 °C | ID, pulse | 240 | A |
| Continuous diode forward current1), TC=25 °C | IS | 80 | A |
| Diode pulsed current2), TC=25 °C | IS, pulse | 240 | A |
| Power dissipation3) ,TC=25 °C | PD | 500 | W |
| Single pulsed avalanche energy5) | EAS | 2900 | mJ |
| MOSFET dv/dt ruggedness, VDS=0…480 V | dv/dt | 100 | V/ns |
| Reverse diode dv/dt, VDS=0…480 V, ISD≤ID | dv/dt | 50 | V/ns |
| Operation and storage temperature | Tstg, Tj | -55 to 150 | °C |
Thermal Characteristics
| Parameter | Symbol | Value | Unit |
| Thermal resistance, junction-case | RθJC | 0.25 | °C/W |
| Thermal resistance, junction-ambient4) | RθJA | 62 | °C/W |
Electrical Characteristics at Tj=25°C unless otherwise specified
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test condition |
Drain-source breakdown voltage | BVDSS | 650 | | | V | VGS=0 V, ID=2 mA |
| 700 | 770 | | VGS=0 V, ID=2 mA, Tj=150 °C |
Gate threshold voltage | VGS(th) | 3.0 | | 4.5 | V | VDS=VGS, ID=2 mA |
Drain-source on-state resistance | RDS(ON) | | 0.032 | 0.038 | Ω | VGS=10 V, ID=40 A |
| | 0.083 | | VGS=10 V, ID=40 A, Tj=150 °C |
| Gate-source leakage current | IGSS | | | 100 | nA | VGS=30 V |
| | | -100 | VGS=-30 V |
| Drain-source leakage current | IDSS | | | 10 | μA | VDS=650 V, VGS=0 V |
| Gate resistance | RG | | 2.1 | | Ω | ƒ=1 MHz, Open drain |
Dynamic Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test condition |
| Input capacitance | Ciss | | 9276 | | pF | VGS=0 V, VDS=50 V, ƒ=100 kHz |
| Output capacitance | Coss | | 486 | | pF |
| Reverse transfer capacitance | Crss | | 12.8 | | pF |
| Effective output capacitance, energy related | Co(er) | | 278 | | pF | VGS=0 V, VDS=0 V-400 V |
| Effective output capacitance, time related | Co(tr) | | 1477 | | pF |
| Turn-on delay time | td(on) | | 55.9 | | ns | VGS=10 V, VDS=400 V, RG=2 Ω, ID=40 A |
| Rise time | tr | | 121.2 | | ns |
| Turn-off delay time | td(off) | | 114.2 | | ns |
| Fall time | tf | | 8.75 | | ns |
Gate Charge Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test condition |
| Total gate charge | Qg | | 175.0 | | nC | VGS=10 V, VDS=400 V, ID=40 A |
| Gate-source charge | Qgs | | 40.1 | | nC |
| Gate-drain charge | Qgd | | 76.1 | | nC |
| Gate plateau voltage | Vplateau | | 6.4 | | V |
Body Diode Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test condition |
| Diode forward voltage | VSD | | | 1.3 | V | IS=80 A, VGS=0 V |
| Reverse recovery time | trr | | 180 | | ns | IS=30 A, di/dt=100 A/μs |
| Reverse recovery charge | Qrr | | 1.5 | | uC |
| Peak reverse recovery current | Irrm | | 15.2 | | A |
Note Calculated continuous current based on maximum allowable junction temperature. Repetitive rating; pulse width limited by max. junction temperature. Pd is based on max. junction temperature, using junction-case thermal resistance. The value of RθJA is measured with the device mounted on 1 in 2 FR-4 board with 2oz. Copper, in a still air environment with Ta=25 °C. VDD=300 V, VGS=10 V, L=40 mH, starting Tj=25 °C.
>>
