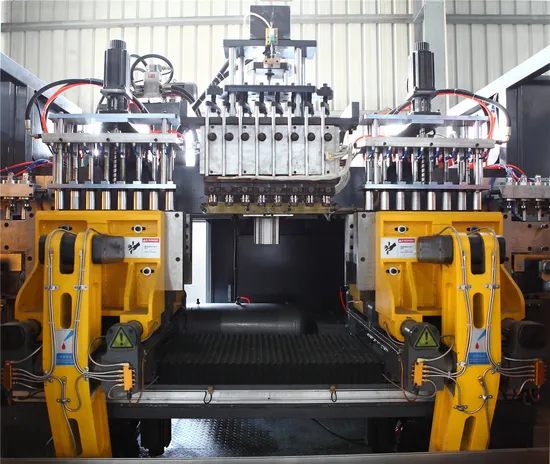

High Density Plastic Blow Molding Machine for Making PE Bottles

US$51,500.00-60,000.00 1 Unit (MOQ)

Basic Info.

Model NO.
SYJII-SF-75-8
Raw Material
PE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Avilable
Type of Shipping
Sea Transportation
Transport Package
Wooden Packing
Specification
4100mm*4000mm*2250mm
Trademark
SJ
Origin
China

Product Description


Yuhuan Shengjiang Plastic Machinery Factory is located in Qinggang economic development zone of Yuhuan, Taizhou city, Zhejiang province. It is an integrated company which includes research & development, production and sales for more than 30years. The Factory is professional on producing blow moulding machine, extrusion machine, and tube drawing machine, especially in the equipments of one-time blow moulding. All the equipments are widely used in the plastic packaging industries for beverage, washing, furniture, toys, automobile, medical, medicine and farm chemical. And the raw materials involved include (PVC, PETG,PE, PP, PS, PC, ABS,)etc.Based on the advanced equipments for production inspection, commissioning and installation.
Code SYJII-SF-75-8
Max Product Volume 400ml
Output 2800pc/h
Machine Size 4100mm*4000mm*2250mm
Weight 8000KGS
Voltage&Frequency Clients' Specified
screw Diameter 75mm
L/D Ratio 1:25
Die Head Qty 8pcs
Max Center Distance of Die Head 70/80
Extrusion Motor Power 30KW
Total Power 80KW
Average Energy Consumption 30kw
Extruder heating power 16kw
Number of hating zone 4
Oil pump drive power /
Max plasticizing capacity 120kg/h
Platen Size 500mm*480mm
Max mould size 650mm*380mm
Clamping force 110KN
Opening Stroke 190mm-440mm
Moving Stroke 680mm
Cooling water pressure 0.3MPa
Water consumption 40L/min
Air pressure 0.6Mpa
Air consumption 2.5centiare/min
