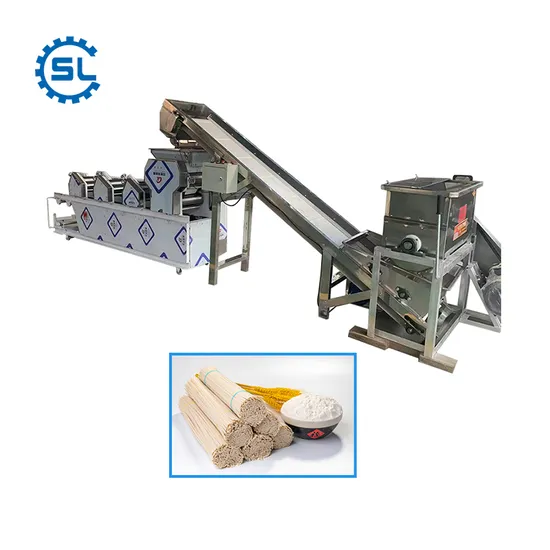

Automatic Japan Noodles Making Machine Fresh Noodle Maker Dry Noodle Press Machine

Product Description

Product Description
Dry Noodle Making Line Flow Chart
Mixer - curing machine - noodle pressing machine - drying machine - automatic noodle cutting machine
Flour Mixer
1. It is made of stainless steel and stirred at low speed by cycloidal pin reducer.
2. The equipment realizes that the main materials and auxiliary materials for flour making can be added in proportion according to requirements, the flour can be mixed evenly, the productivity and the mixing proportion of the main and auxiliary materials can be adjusted, the water can be added automatically, and the flour can be mixed continuously and automatically. The continuous automatic dough mixing machine is of the upper discharge type, which enables the mainframe of the flour production line to realize the plane layout, reduce the height of the production mainframe, and save the civil engineering investment. The noodles production line is equipped with this equipment to improve the automation of the noodles production line, make the operation more convenient, reduce the number of operators, reduce labor intensity, and create better economic benefits for the enterprise.
Curing Machine
Different curing machines are configured according to different models. The equipment features continuous and automatic operation to ensure the dough
The dynamic ripening is realized at the same time of ripening time. During the operation of the equipment, there is no dead corner in the curing tank,
The dough is evenly cooked, with good ripening effect, which can meet the needs of producing high-quality noodles. The ripening machine runs stably, with low noise and less power consumption, and has good performance, so that the fabric can be fully ripened.
Noodle Pressing Machine
The main drive of the machine is set below the pressing table, fully enclosed and safe; The appearance is simple and beautiful. The power configuration of the unit is reasonable, and the transmission system adopts a frequency conversion speed regulation controller to regulate the speed, so that the equipment can be operated accurately and conveniently, and the energy-saving effect is significant. The rolled surface is dense, neat, uniform and smooth. Large diameter roll shall be used, and the roll material can be nickel chromium molybdenum cold hardening alloy. There are occasionally iron tools in the fabric, which will not damage the roller. It effectively improves the quality of dried noodles.
Drying Room
1. The drying room is equipped with two closed loop drying and conveying chains inside and outside, and a set of specially designed transmission system. The surface bar is directly supported by the drying and conveying chain without the hook of the surface bar. The surface bar moves around in the drying room for drying. The new drying chamber has the advantages of stable operation, small supporting power, low energy consumption, less strip loss, and high quality noodles.
2. The noodles are stably and accurately delivered to the noodle cutter from the drying room.
Automatic Noodle Cutting Machine
1. The equipment is fully automatic
2. This machine can be connected with the drying room lower shelf system, and the speed can be automatically tracked, or the automatic bar cutting program can be completed by manually placing the bar.
3. The slitter of this machine can be adjusted freely within the range of 3-18 face bars per minute
4. The cutting length can be set freely without stopping the machine. The setting range is 100mm-299mm, and the resolution is 1mm. This effectively improves the noodle yield and greatly reduces the loss.
5. Sliver length error is small, no more than ± 1.5mm.
Product Parameters

Model	Capacity	Power	Layout Size	Worker
330	2500kg/8hrs	30kw	30*6*3.5 meters	4
350	4000kg/8hrs	38kw	40*7.2*3.5 meters	4
450	5000kg/8hrs	45kw	45*9.6*3.5 meters	4
550	6000kg/8hrs	59kw	50*10.3*3.5 meters	4
650	8000kg/8hrs	75kw	55*10.3*3.5 meters	4
765	10000kg/8hrs	85kw	60*15*3.5 meters	5
800	12000kg/8hrs	95kw	60*15*3.5 meters	5
1000	16000kg/8hrs	100kw	65*18*3.5 meters	6

Detailed Photos
Automatic noodle making machine, it have different capacity.

Related Machine
Continuous steamer with cooler, it could used for fresh noodle, dry noodle and instant noodle.
High-pressure steamer, it have different capacity.
For instant noodle making line, it have different capacity.

Packaging & Shipping
Factory Picture
Certifications

---
