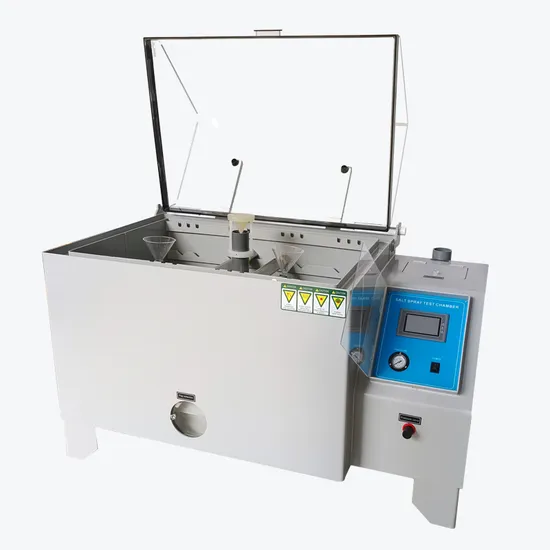

Environmental Salt Spray Fog Tester Cyclic Corrosion Test Apparatus Chamber

Product Description

Product Description
Product Usage
The salt spray test machine is designed for the surface treatment of various materials, including paint, electroplating, organic and inorganic coatings, anodizing, anti-rust oil and other anti-corrosion treatments to test the corrosion resistance of their products.
Features
1. The use of the new intelligent salt spray test machine and the printed circuit board solves the problem that the relay circuit of the old salt spray test machine is prone to line failure.
2. The temperature sensor uses the original Japanese imported digital sensor chip, which will not decay after ten years of use. The old models mostly use PT-100 and K type. With the extension of the service life, most of the sensors will be inaccurate. If calibration is not used If it does, it will cause great harm to the test.
3. The new salt spray testing machine integrates programmable, continuous/interval spray, manual/automatic mode. With this collection of multiple modes, it can basically meet all current standards for salt spray testing machines, so that customers don't have to worry about the selection of salt spray testing machines.
Salt spray test chamber standard
1. GB/T 2423.17-1993 salt spray test
2. GB/T2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM.B117-97 salt spray test
5. JISH8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB.10587-89 salt spray test
9. CNS.4158 salt spray test
10. CNS.4159CASS accelerated copper acetate salt spray test
11. GB/T 12967.3-91 CASS accelerated copper acetate salt spray test

Product Parameters

Model	HJ-60	HJ-90	HJ-120	HJ-160	HJ-200
Chamber size in test chamber WxDxH(cm)	60x45x40	90x60x50	120x100x50	160x100x50	200x100x60
Test outdoor box size WxDxH(cm)	107x60x118	141x88x128	190x110x140	230x130x140	270x150x150
Laboratory temperature	Salt water test method (NSS ACSS) 35ºC ± 1ºC/ Corrosion resistance test method (CASS) 50ºC±1ºC
Pressure barrel temperature	Salt water test method (NSS ACSS) 47ºC ± 1ºC/ Corrosion resistance test method (CASS) 63ºC+1ºC
Brine temperature	35ºC±1ºC 50ºC±1ºC
Salt water tank capacity	15L 25L 40L
Brine concentration	Add 0.26 g of copper chloride (CuCI2 2H2O) per F liter of 5% concentration of yue chloride solution or 5% concentration of vaporized copper solution
Compressed air pressure	1.00±0.01kgf/cm2
Spray volume	1.0~2.0ml/80cm2/h (collect at least 16 hours, take the average value) The relative humidity of the laboratory is above 85%
Laboratory capacity	108L 270L 480L 800L 1440L
