Single Facer Corrugated Cardboard Production Line

Product Description

DW-80 Single Facer Corrugated Cardboard Production Line

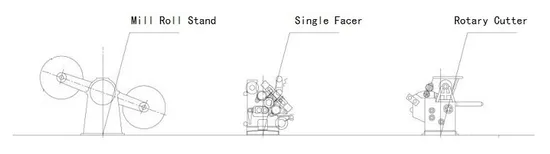

1) This product line consists of three single machines, Electrical Shaftless Mill Roll Stand, SF-280 Fingerless type Single Facer, NC Rotary Cutter, Steam Boiler & Pipeline(customer-owned parts), etc.
2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Flute Laminator Machine or Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for small or medium carton factories.

Max Effective Width	1100~2200mm
Max Paper Roll Diameter	1400mm
Max Paper Roll Weight	2000kg

Corrugating Roller	Φ280mm, 48CrMo alloy steel, hardness HRC58°-60°
Cutting Length	300~9999mm
Cutting Precision	±1.5mm

Design Speed	80m/min
Heating Method	Steam Heating
Economic Working Speed	60~80m/min

Yush Machine Group Co., Ltd. is a professional enterprise specializing in R&D, production, sales and service of complete manufacturing equipments of corrugated cardboard, hard paperboard, carton, box, paper, etc. (all machines to make according to customer request available) Our main products consists of 2/3/4-ply Hard Cardboard Production Line, 3/5/7-layer Corrugated Cardboard Production Line (Single Facer Corrugation Line, Flute Laminator, Shaftless Mill Roll Stand, Preheater, Single Facer, Overhead Bridge, Multiple Preheater, Multiple Gluer, Double Facer, NC Thin Blade Slitter Scorer, NC Rotary Cut-off, Conveyor Stacker, NC Duplex Cut-off, NC Double-layer Stacker, etc.) Carton Box Making Machine (Slitter Scorer, Slotter, Die-cutter, Flexo Printer Slotter Die-cutter Stacker, Folder Gluer, Stitcher, Strapper, etc.) Paper Box Making Machine (Cardboard Laminator, Film Laminator, Die-cutting and Creasing Machine, Folder Gluer, Cardboard Slotter, Box Corner Gluer, Sheet Feeding and Pasting Machine, etc.) Paper Products Related Machines (Automatic Paper Roll to Sheet Cutter, Program-control Paper Guillotine, Automatic Slitter Rewinder, Automatic Reel Flexo Printer, Paper Tube & Core Making Machine, Paper Corner Protector Making Machine, Paper Cup Making Machine, Paper Straw Making Machine, etc.)

---
