1.85 mm 1/1.8" 12.0 Megapixel Fisheye CCTV Lens For Camera Sport ITS Crossing Security Surveillance Lenses 360 Panoramic Intercom Wide Angle China Lentz Optics M12 S-mount ( Water-proof IP67 Optional )

Product Details

Product Description

Product Description
Website Datasheet:
/products_detail.asp?id=1373&cataid=115&Cataupper=0&list=6

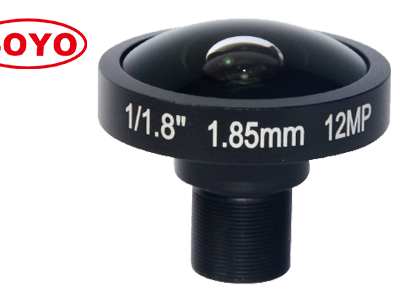

1.85 mm 1/1.8" 12.0 Megapixel Fisheye CCTV Lens For Camera Sport ITS Crossing Security
Surveillance Lenses 360 Panoramic Intercom Wide Angle China Lentz Optics M12 S-mount ( Water-proof IP67 Optional )
High resolution: 12 megapixel covering 4K,1080P
Focal length: 1.85mm support wide FOV.
Large format: 1/1.8" can cover 1/2“, 1/2.8", 1/3".
Wide FOV : 185 degree surveillance for D.V.H.
Water-proof: Water-proof IP67 is optional ( Default is not water-proof )
Application: Observatory, street, office, smart home etc

Model		SFY18520IR-12M
Resolution		12 Megapixel
Format		1/1.8" ( Max Φ5.6 )
Focal Length		1.85mm
B.F.L		6.25mm
Aperture		F2.0 Fixed iris
Angle of View (°) DHV	1/1.8"	185185185
	1/2"	185185158
	1/2.3"	185185151
M.O.D		0.15m
Distortion		-97%
M.B.L		/
Size		Φ34*29.27mm
T.T.L		35.05mm
Mount		M12
Weight		31g
Marks		Image circle max Φ5.6
