| US$17,771.00 | 1 Piece (MOQ) |

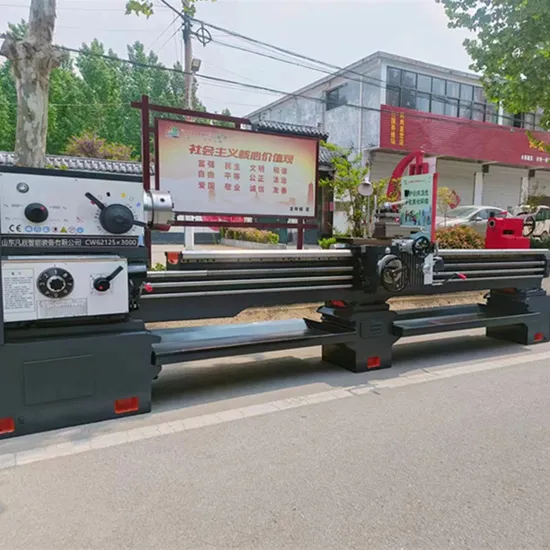

| model | unit | CW62125×2000 |
The boldest rotation diameter of the workpiece on the bed | mm | 1250 |
maximum length of workpiece | mm | 2000 |
The maximum rotation diameter of the workpiece on the tool holder | mm | 850 |
Maximum turning diameter inside the saddle | mm | 1550 |
| Saddle length | mm | 300 |
| Inner length of saddle | mm | 200 |
| Spindle hole diameter | mm | 105 |
Spindle hole front end taper | 120 | |
Number of spindle speeds: forward rotation | species | 21 |
Spindle speed reversal | species | 12 |
| () Spindle speed range (the following groups of speeds are selected by the user when ordering) | 7-60/18-140/40-330/100- | |
| n1* | ||
| corotation | r/min | 3.15-315 |
| reversal | r/min | 3.5-278 |
| n2 | ||
| corotation | r/min | 2-200 |
| reversal | r/min | 2.24-178 |
Range of feed rate for each spindle rotation tool holder | species | 56 |
| direction | mm | 0.1-12 |
| transverse | mm | 0.05-6 |
| top rest | mm | 0.025-3 |
Metric thread pitch range | 44 1-120 | |
| Inch thread range | 31 24-1/4t.p.i | |
| Module thread range | mm | 45 0.5-60 |
| Diameter pitch thread range | 38 1/2-56DP | |
| Maximum stroke of bed saddle | mm | 50 Reduce maximum workpiece length by 50 |
