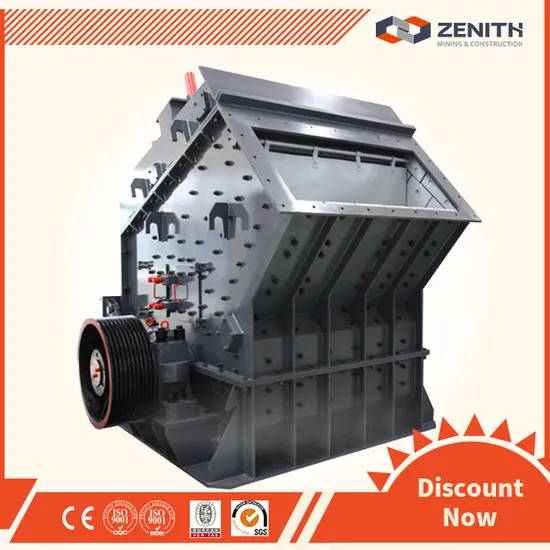

Impact Crusher, Impact Crusher Machine (PF Series)

Product Description

Impact Crusher, Impact Crusher Machine (PF Series) introduction
Zenith impact crusher is optimized and widely applied in the first and secondary crushing. It can crush material like granite, basalt, bluestone, etc the longest side of which is less than 500mm, and anti-pressure strength is not more than 320Mpa, and the final product is ideal device for aggregation used in highway and railway surface as well as water and electricity industry.
Impact crusher features:
1) Locking sleeve assembly Connection
2) Blow bar with high chrome
3) Hydraulic or hand opening
4) Special impact plate
5) Cubical shape of final product
6) Easy maintenance
7) Reliable performance
Impact crusher Product Description

This series of product is a Three cavity crusher with three-level impact plates. The impact plate of rear chamber plays a role in reeling. The impact crusher machine can handle materials with a side length below 100-800mm, and it is applicable for crushing medium hard materials. The crusher's compressive strength is up to 350MPa, the discharge particle size is relatively small, the material particle size is good, and particles are shown in a cubic shape. The rotor components are elaborated, the dynamic and static balance of rotor is good, and the machine can be in smooth operation with low noise.

impact crusher machine Application:

This series of product is usually applied in the secondary crushing, and the compressive strength is up to 350MPa. The impact crusher is applicable for crushing limestone, concrete, basalt, and especially applicable for the preparation of road stone. It is widely used in various fields of mining, smelting, building materials, highway, railway, water conservancy and chemical industry, etc.

Model	Rotor Φ×L(mm)	Feed Opening(mm)	Max Feeding(mm)	Capacity(t/h)	Power(kw)	Motor Model	Machine Size(mm)
PF1010	Φ1000×1050	400×1080	350	50-80	4-75	Y280S-4/75	2455×2086×2800
PF1210	Φ1250×1050	400×1080	350	60-120	6-110	Y315L1-6/110	2590×2050×2810
PF1214	Φ1250×1400	400×1430	350	80-160	6-132	Y315L2-6/132	2590×2400×2810
PF1315	Φ1300×1500	860×1520	350	120-260	6-200	Y355M3-6/200	2930×2760×3050

---
