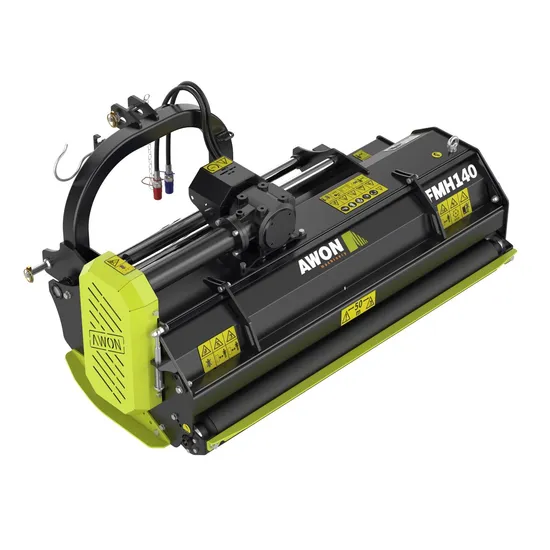

Heavy Duty Side Shift Tractor Flail Mower

Product Description

FMH series are rear mounted,PTO driven flail mowers for tractors. 13 models in total,working width varies from 1,000 to 3,000mm,power demand 25-130HP.FMH series can be typically aggregated with tractors with 3-point hitch of Cat.Ior II.Flail shaft is driven by PTO shaft,while the side-shift by the tractor's hydraulics to allow for shifting from one side to another,while therefore allow for obstacle passing and easier overlap adjustment.
Standard Equipment Shaft with double flail spiral• Overrunning clutch integrated with gearbox• Mechanical safety breakaway device • Mowing height adjustment with ground following bar • Wide-angle PTO shaft • Automatic tension of V-belts •Y knives•3-point hitch•Hydraulic clinder

Main Features - For Tractors 90-130 HP
- Comes with Hammer Blades with precise blade overlap
- Standard 3-Pt Category I Hitch Mount
- Shear Bolt PTO Shaft for Standard 1-3/8" 6-Spline PTO
- PTO Driveline Included Free of Charge
- Adjustable Finished Cutting Height (both Rear Roller & Skids)
- Balanced Rotor and Shaft
- Powder Coat Paint Finish
- Optional Hydraulic Offset * For Tractors 90-130 HP
Bearings
Bearings are greasable and replaceable. Sizing is standard and can be purchased at any local bearing shop.
Cutting Height
Cutting height can be adjusted by the tractor's 3-Pt hitch or by the mowers adjustable rear roller.
Adjustable Offset
Right Side Offset is very helpful if you are working around fence lines, trees or other items in the field. The distance is the addition that is added to the mowing width from center of the gearbox to the right cutting edge.
Offset Options(Swing arm)
•When the rubber surround of the SD swing arm touches the obstacle, the wheel rotates and deflects the swinging arm and its cutting blade away from it. It automatically returns to its original position once it passes the obstacle.
•HD swing arm could detect obstacles without touching.
Swing Arm Is Optional
SD Offset(Swing Arm) HD Offset(Swing Arm)

Model	Dimension(mm)	Weight(Kg)	Cutting Width(mm)	PTO Input Speed	Number of blades	Tractor Power (HP)
FMH120	1350*815*770	239	1200	540	18	30-50
FMH140	1550*815*770	244	1400	540	20	30-50
FMH160	1750*815*770	268	1600	540	24	30-50
FMH165	1820*1000*836	393	1650	540	18	50-70
FMH185	2020*1000*836	426	1850	540	22	50-70
FMH205	2220*1000*836	443	2050	540	24	50-70
FMH180	2000*1044*1012	579	1800	540	16	70-100
FMH200	2200*1044*1012	612	2000	540	18	70-100
FMH220	2400*1044*1012	646	2200	540	20	70-100
FMH240	2600*1044*1012	680	2400	540	22	70-100
FMH260	2840*1264*1020	991	2600	540	20	90-130
FMH280	3040*1264*1020	1042	2800	540	22	90-130
FMH300	3240*1264*1020	1056	3000	540	24	90-130

AWON GROUP founded in 2006 which headquarter in the Netherlands is an integrated solution provider for modern Agricultural, Orchard and Gardening applications. With much effort of these years, AWON machinery gradually grows to a pioneer in modern agriculture from designing to manufacturing a wide range of agricultural implements which used in commercial crops and field crops, including: Mower, mulcher, wood shredder, cotton baler, straw baler etc. With AWON GROUP's excellent design concepts and reliable product performance to help users improve operating efficiency, reduce usage costs, and increase profits, thereby protecting the ecological environment and achieving sustainable development of agriculture and nature.
The following are our patent certificates: Design Patent (mulcher), Utility Patent (branch mulcher, mulcher blades, pick-up branch mulcher and telescopic mower)
The following are our original hand-painted drawings, originality has always been our pursuit!

---
