CE Certified Design Mini Agricultural Hydraulic Rubber Crawler for Small Construction Digger Road Garden Farm Construction Backhoe Wheel Excavator

Product Description

Product Description

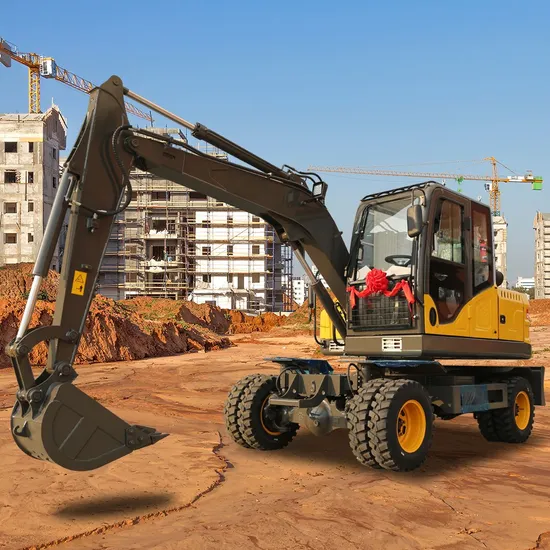

wheel excavator is a kind of medium-sized wheel excavator, widely used in construction engineering, urban infrastructure, earthmoving operations and road maintenance and other fields. Compared with traditional crawler excavators, wheeled excavators are favored for their flexibility and mobility.
Flexibility: The wheeled structure gives it higher mobility on urban roads and construction sites, especially suitable for working in narrow Spaces.
Efficiency: Usually equipped with high-efficiency engine and hydraulic system, can quickly complete a variety of operations, improve work efficiency.
Versatility: It can be matched with a variety of accessories (such as buckets, clamps, crushing hammers, etc.) to meet a variety of construction needs.
Ease of operation: The modern control system and ergonomic cab design make the operator more comfortable during long working hours.
Power system: The wheeled excavator uses a diesel engine to drive the tires, providing the power needed for walking, digging and hydraulic operation.
Hydraulic system: The hydraulic system is used to control the lift, fall and swing of the bucket, but also to drive a variety of accessories to achieve complex operations.
Control system: Equipped with an advanced control system, the operator can easily control various functions of the equipment through joysticks and buttons.
With its flexibility, efficiency and versatility, the wheel excavator has become one of the most important equipment in the construction and engineering industry. Proper use and maintenance will significantly improve its work efficiency and service life, and can perform well in a variety of construction environments.zmwm22
Product Parameters
Main Parameters of ZM60 Wheel Excavator

Overall weight	5700(kg)
Shipping length	6500(mm)
Total height during transportation	2775(mm)
Transport width	2200(mm)
Number of tires	750-16*8
Boom length	3200(mm)
Stick length	1800(mm)
Rated working pressure	20MPA
Maximum excavation height	6850(mm)
Maximum unloading height	4200(mm)
Maximum excavation depth	3368(mm)
Maximum excavation range	7530(mm)
Bulldozer Up/Down	300/100(mm)
Yangdong (State 2)	48KW
Climbing ability	30°
Maximum excavation force	8200N
Walkingspeed	7-35KM/h
Rotation speed	10rpm
Bucket capacity	0.3 m3
Fuel tank capacity	110L
Hydraulic oil capacity	80L

Main Parameters of ZM70 Wheel Excavator

Operate weight	7 Ton
Bucket capacity	0.21CBM
Engine Model	Xinchai498
Engine Power	40KW
Travel Speed	0/28 km/h
Gradeability	>25 degrees
System Pressure	22MPa
Max Digging Radius	5884mm
Max. Digging Depth	3222mm
Max. Digging Height	5888mm
Max. Dumping Height	4268mm
Min.Swing Radius	2075mm
Overall Length	5768mm
Overall Width	2157mm
Overall Height	2908mm
MAX Dozer Cutting	129mm
MAX Dozer Lifting	328mm

Main Parameters of ZM85 Wheel Excavator

Excavator Model	ZM85
Operatig Weight	8,500kg
Bucket Capacity	0.40m3
Engine Brand&Power	Yuchai4108&83hp
Oil Consumption	6L/Hour
Swing Speed	12rpm
Travel Speed	25km/h
Gradeability	25°
Swing Radius	2185/2200mm

ZM85A-6
Pump	Imported constant power variable pump
Swing	Imported swing valve complement
Drive	Four wheels hydraulic drive,which is much powerful and best for driving on slushy ground
Oil piping system	With oil piping system for hydraulic hammer
JHL85B
Pump	Imported constant power variable pump
Valve	Imported main valve
Swing	Imported swing valve complement
Drive	Four wheels hydraulic drive,which is much powerful and best for driving on slushy ground
Tyre	750-20
Speed reduction	Dongfanghong parking and emergency(wheel) brake
Cab	Comfort adjustable seat suit for long time work & air conditioner for severe weather
Oil piping system	With oil piping system for hydraulic hammer

Boom Length	3,500mm
Arm Length	1,650mm
A. Max. Digging Radius	6,349mm
B. Max. Digging Depth	3,970mm
C. Max. Digging Height	6,700mm
D. Max. Dumping Height	4,600mm
E. MAX Dozer Cutting Depth	430mm
F. MAX Dozer Lifting Height	420mm

Main Parameters of ZM135 Wheel Excavator

Standard Bucket Capacity(m3)	0.6
Swing Speed(rpm)	12
Max.Grade Ability(°)	25
Max.Bucket Digging Force(kN)	68
Max.Arm Digging Force(kN)	54
Engine Model	YC4A115-T20
Rated Power Output/Revolution(kw/rpm)	85/2200
Tire Type	9.0-20
Set Pressure of Hydraulic Pump(MPa)	32
MAX digging height(mm)	7580
MAX dumping height(mm)	5340
MAX digging depth(mm)	4095
MAX digging radius(mm)	7557
Min swing radius(mm)	2988
MAX dozer lifting height(mm)	558
MAX dozer cutting depth(mm)	80

Detailed Photos
Flexibility: The wheeled structure gives it higher mobility on urban roads and construction sites, especially suitable for working in narrow Spaces.
Efficiency: Usually equipped with high-efficiency engine and hydraulic system, can quickly complete a variety of operations, improve work efficiency.
Versatility: It can be matched with a variety of accessories (such as buckets, clamps, crushing hammers, etc.) to meet a variety of construction needs.
Ease of operation: The modern control system and ergonomic cab design make the operator more comfortable during long working hours.
Power system: The 60-wheeled excavator uses a diesel engine to drive the tires, providing the power needed for walking, digging and hydraulic operation.
Hydraulic system: The hydraulic system is used to control the lift, fall and swing of the bucket, but also to drive a variety of accessories to achieve complex operations.
Control system: Equipped with an advanced control system, the operator can easily control various functions of the equipment through joysticks and buttons.
FAQ
1.Factory
Q: Are you bagger machine manufacturer?
A: We are the excavator machine manufacturer. china coal crawler excavator factory address is: Jizou Road, Jining city, Shandong
province, China.
2. Warranty
Q: How to identify the quality about mini excavator for sale?
A: Our mini crawler excavator have a 12 months warranty after sale.
3. Packing
Q:What is the container size of cheap mini digger?
A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
4. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these 1 ton china excavator, we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
5.Customer
Q: Where country customer you sale about chinese mini excavator for sale?
A: excavator in dubai , mini excavator for sale malaysia , excavator price in india , our customer also in Australia, USA,
Hongkong, Taiwan, and southeast asia.
