Full-Automatic Hydraulic Telescopic Container Lifting Spreader for Quay Crane

Product Description

Product Description
20'40'45' Electrical Hydraulic Automatic Rotation Container Spreader twist lock
Description
Hydraulic telescopic spreader is specially designed for quayside container bridge crane and rail gantry cranes.It is suitable to both ISO 20FT and 40FT containers and its lifting capacity is 40T.Container spreader is driven by hydraulic system.Its automatic working provides high efficiency,especially for large container loading and unloading yard.
Drawing
Parameter

For ISO standard 20/40ft container		control voltage	AC 220V(optional)
Rated lifting load	41T	Total power	≤8kw
Allowable load eccentricity	±10%	Protection class	IP55
Load of lifting lugs at four coners	10T*4	Operating pressure of the system	100 bar
Dead weight (spreader)	14.5T	Ambient temperature	20ºC-+45ºC
Expansion time(20-40)	~30s	Twistlock mode	ISO floating twistlock, driven by oil cylinder
Twistlock rotation(90°)	~1s	Telescpoic mode	driven by a hydraulic motor and reduction gear box connected to en endless chain
Power Voltage/Frequency	AC 380V(3P/50HZ)	Flipper device	Knock-down flippers
Application	QC, RMG,RTG,Portal crane, Jib crane

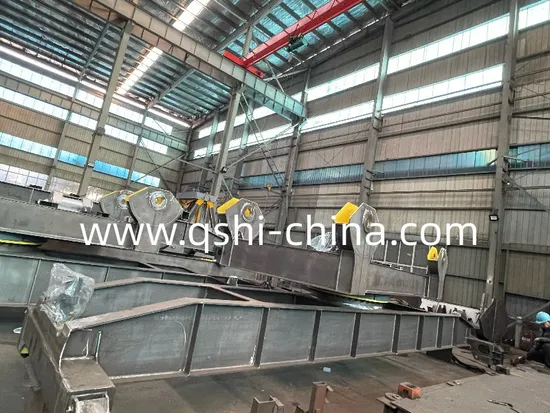

Pictures
About us
QSHI supplies different kinds of products. High quality and favorable price.
We're pleased to get your Inquiry and we will feedback ASAP.
We stick to the principle "Quality First, Service First, Continuous Improvement and Customer Satisfaction" and aim at "Zero Defect Zero Complaint".
To perfect our service, we provide products with good quality at reasonable price.
Our Service
Being a good adviser and assistant of client, we can help them to get rich and generous returns on their investment.
1.Pre-sale services:
a: Design customized project for clients.
b: Design and manufacture products according to clients special requirement.
c: Train technical personnel for clients.
2.Services during the sale:
a: Help clients to find reasonable freight forwarders ahead of delivery.
b: Help clients to draw solving plans.
3.After-sale services:
a: Assist clients to prepare for the construction scheme.
b: Install and debug equipment.
c: Train the first-line operators.
d: Examine equipment.
e: Take initiative to eliminate the troubles immediately.
f: Provide technical exchanging.
FAQ
ORDER INTRODUCTION:
Pls kindly send us your detailed specifications as follow if you are interested in our container spreaders.
1. What's the SWL of your crane?
2. What's the type of your crane?
3. What's the working condition of spreader?
We will offer you the best suitable solution with best price and quality.
These specifications above can make it clear about your requirements.
Thanks very much for your kindly cooperation!

---
