US$100,000.00-140,000.00
|
1 set
(MOQ)
|
Basic Info.
Making Method of Parison
Stretch Blow
Computerized
Computerized
After-sales Service
One Year
Transport Package
Wooden Box
Production Capacity
13000-15000PCS/H
Product Description
CP8-1L 8 cavities

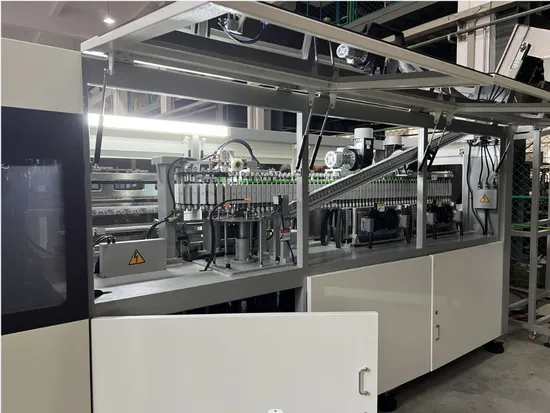

PET Full-automatic Blow Molding Machine
Theoretical Output:
13000-15000BPH(500ml round bottle)
Actual Output is determined by the weight of perform and the shape of bottle.
1.Technical parameter
| ITEM | UNIT | CP8-1L |
| CONTAINER | Max.container volume | L | 1 |
| | Max.neck outer diameter | mm | 30 |
| | Max.container diameter | mm | 80 |
| | Max.container height | mm | 300 |
| | Number of cavity | pcs | 8 |
| | Theoretical output | bph | 13000-15000 |
| | Mold center distance | mm | 90 |
| ELECTRICAL | Max. heating power | kw | 80 |
| | Servo motor power | kw | 17 |
| | Other motor power | kw | 5 |
| | Total power | kw | 102 |
| COMPRESSED AIR | Operating pressure | Mpa | 0.7 |
| | Low pressure air consuming | L/min | 1000 |
| | Blowing pressure | Mpa | ≤3.5 |
| | High pressure air consuming | L/min | 7000-7500 |
| CHILLER WATER | Pressure | Mpa | 0.3-0.5 |
| | Temperature | ºC | 10-12 |
| | Flow rate | L/min | 50 |
| MACHINE DIMENSION | Size(L*W*H) | m | 5.8×1.5×2.6 |
| | Weight | kg | 6000 |
2.Price list of all above machines
| Model name | Spec. | Qty | Unit(CNY) | Amount(CNY) | Note |
| Full automatic bottle blowing Machine | CP8-1L | 1 | 650,000 | 650,000 | One blower and one loader(102kw) |
| Bottle mold | 600ML | 1 | 30,000 | 30,000 | 8 cavity Aluminum |
| Below auxiliary machines are for customer's reference |
| H P Air compressor | 4.0m³/min 40kg | 2 | 75,000 | 150,000 | For blowing(88kw) |
| HP air tank | 1.0m³/min 40kg | 2 | 12,000 | 24,000 | For storing compressed air |
| Air dryer | 8.0m³/min 40kg | 1 | 22,000 | 22,000 | with 2 air filters(4kw) |
| oil remover filter | NTLJ-8.0/40 | 1 | 4800 | 4800 | |
| smell remover filter | NTLN-8.0/40H | 1 | 4800 | 4800 | |
| Water chiller | 8P | 1 | 24,000 | 24,000 | Cooling mould(6kw) |
Prices are for reference only
>>
