US$18.00-38.00
|
10 kg
(MOQ)
|
Basic Info.
Surface
Polished, Bright Finished, Pickling, Sand-Blast etc
Application1
Industrial, Medical, Petrochemical Industry, etc
Certificates
SGS/ISO9001:2015
Test
Eddy Current Test, Tensile Strength Test, Hydraulic
Processing
Hot Rolled, Cold Rolled, Forge, Cold Drawn
Application
Industrial, Medical
Grade
Gr1 Gr2 Gr3 Gr5 Gr7 Gr9 Gr12
Transport Package
Wooden Box
Production Capacity
20000t/a
Product Description

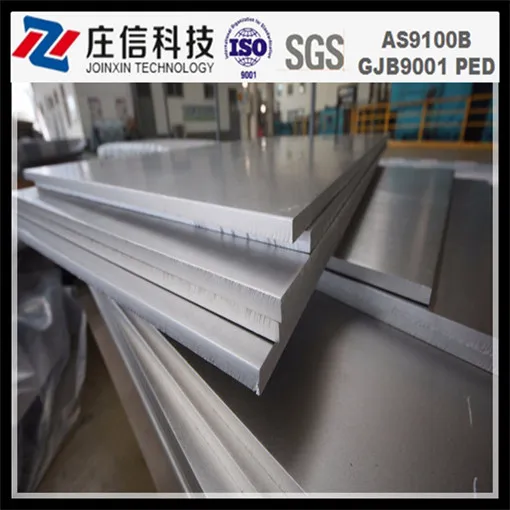

Factory Price High Quality Thickness 0.01mm-100mm Titanium Sheet titanium plate
Applications of Titanium Plates / Sheets:
Fire wall, driver protection, valve covers, bell housings, driveshaft tunnels, brake backing plates, heat shields, rocker shaft stands, jewelry
Available Grades of Titanium Plates / Sheets:
Grade1 Grade2 Grade3 Grade5 Grade7 Grade9 Grade11 Grade12
Available Size of Titanium Plates / Sheets:
Titanium Plate: (4-100)mm*(800-2600)mm*(2000-12000)mm
Titanium Sheet: (0.01-4)mm*(800-1560)mm*(~6000)mm
Available Shape of Titanium Plates / Sheets: Round, Square
Chemical Composition
| Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | Bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | Bal |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | Bal |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | Bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | / | / | / | Bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12-0.25 | / | / | Bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | Bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2-0.4 | 0.6-0.9 | Bal |
Tensile Strength
| Grade | Elongation(%) | Tensile Strength (Min) | Yield Strength (Min) |
| ksi | Mpa | ksi | Mpa |
| Gr1 | 24 | 35 | 240 | 20 | 138 |
| Gr2 | 20 | 50 | 345 | 40 | 275 |
| Gr3 | 18 | 65 | 450 | 55 | 380 |
| Gr4 | 15 | 80 | 550 | 70 | 483 |
| Gr5 | 10 | 130 | 895 | 120 | 828 |
| Gr7 | 20 | 50 | 345 | 40 | 275 |
| Gr9 | 15 | 90 | 620 | 70 | 438 |
| Gr12 | 18 | 70 | 438 | 50 | 345 |
Titanium and Alloy Products
| Product name | Specifications |
| Titanium Rod & Bar & Ingots | Ф3mm~Ф1020mm,the maximum weight is up to 12t |
| Titanium Slab | (80~400)mm×(~1500)mm×(~2600)mm |
| Titanium Forgings | Weight per piece≤2000kg |
| Titanium Hot-rolled plates | (4~100)mm×(800~2600)mm×(2000~12000)mm |
| Titanium Cold-rolled Sheet | (0.01~4.0)mm×(800~1560)mm×( ~6000) mm |
| Titanium Foil / Strips | (0.01~2.0)mm×(800~1560)mm×L |
| Titanium Tubes / Pipes | Ф(3~114)mm×( 0.2~5)mm × (~15000)mm |
| Standards | GB,GJB,ASTM,AMS,BS,DIN,DMS,JIS,ГОСт |
| Titanium Grade | GR1,GR2,GR3,GR5,GR7,GR12 BT1-00,BT1-0,BT1-2 TA0,TA2,TA3,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4 |
| Category | Material | Dimension(mm) | Specification |
| Titanium & Alloy ingots & bars | CP Ti,
Ti-6Al-4V, Ti-6Al-4V Eli,
Ti-3Al-2.5V,
Ti-5Al-2.5Sn, Ti-5Al-2.5Sn Eli,
Ti-0.05Pd, Ti-0.2Pd,
Ti-6Al-7Nb,
Ti-13Nb-13Zr,
Ti-0.1Ru,
Ti-3Al-8V-6Cr-4Mo-4Zr,
Ti-6Al-4V-0.1Ru,
Etc. | Standard
or
customized | GB/T 2965, ASTM B348 |
| Titanium & Alloy castings | GB/T 6614, ASTM B367 |
| Titanium & Alloy forgings | GB/T 25137, ASTM B381 |
| Titanium & Alloy plates | GB/T 3621, ASTM B265 |
| Titanium & Alloy strips & foils | GB/T 3622, ASTM B265 |
| Cold rolled Titanium & Alloy strip coils | GB/T 26723, ASTM B265 |
| Titanium & Alloy wires | GB/T 3623, ASTM B863 |
| Titanium & Alloy seamless tubes | GB/T 3624, ASTM B861 |
| Titanium & Alloy welded tubes | GB/T 26057, ASTM B862 |
| PM Titanium & Alloy components | GB/T 6887, ASTM B817 |
Titanium Production Process
Titanium Production Equipment
About Us
Why Choose Us? 53 years of titanium R&D and production experience Our products have been exported to more than 30 countries all round the world State-owned company with great credit and strong financial strength Competitive price,best service, strict quality control system and on-time delivery Related Supply Chain Service
Contact Us
XI'AN JOINXIN NEW MATERIAL TECHNOLOGY CO.,LTD
Factory Address: 22nd Floor, Kerry B, Wei Yang Dist., Xi'an 710018, PRC.
>>
