US$3,999.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Object
Mixed Feed
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Screw Granulator
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Dry Expansion
Applicable Materials Shape
Powder
Key Word
Feed Pellet Machine
Dimension
2.65*1.45*1.75m
Transport Package
Wooden Cases
Production Capacity
50 Sets Per Month
Product Description

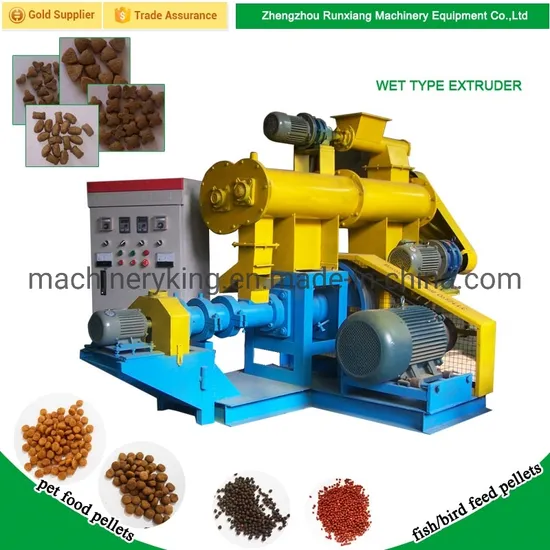

Wet way feed making machine puffing dry pet food production line
Q: What's the difference between dry type extruder and wet type extruder?
A: The difference is the wet type need a steam boiler while the dry type doesn't. The dry type is cheaper than wet type, and the feed pellets made by wet type extruder is much smooth and with better quality.
Q: How long does the floating fish pellet float on the water surface?
A: The feed pellets can float on the water surface for over 20 hours.
Q: Does the fish pellet machine can only make feed pellets for fish?
A: No. It's not only can make high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc., but also can make pellets for chicken,cat, dog, etc.
Q: Do you supply the whole fish feed production line?
A: Yes. We can supply a fish feed product line include crusher, mixer, fish feed pellet machine, feed pellet dryer, fish feed pellet cooler, oil spray machine and packing machine. The capacity is from 60-5000kg/h.
Q: Is there a formula of making fish feed pellet?
A: We can offer free formula to our customers.
1. Brief Introduction
By adjusting the raw materials, temperature and pressure etc. productive technology, our feed granule making machine for fish can produce the floating fish feed with the advantages of novel shapes, abundant nutrition, exquisite texture and slow sinking speed.
2. Main Features Screw Quantity: Single Screw Material: 38CrMoAl Rotating Speed: Adjustable Temperature: Adjustable Self-cleaning Function Forced Lubrication Function Flexible Collocations Pasteurization Function Flexible Collocation of Equipment 3. Dry / Wet Way Fish Feeds Extruder Floating Pellet Making Machine
Production Process: Mixer---Screw conveyer---Extruder---Air conveyer---Dryer---Flavoring line---Cooling machine--- (Packing machine)
Raw Material
The raw material is: Flour,corn meal,soybean meal,maize meal ,meat meal,bone meal,fish meal etc.
Fitness: about 60-80mesh which were crushed and mixed.
Moisture content: about 20%-25%.
Fish Feed Pellet Sample:
Round Shape
Diameter:0.9-15mm by replace the moulds
Spare Parts:
The spare parts including screw,sleeve,heating plate,cutter.
We will supply 3 sets moulds and one whole set wear parts ( 1 screw, 2 sleeve, 1 cutter, 1 heating plate) freely for you.
Technical information:
| Model | WSJY-DGP70B | WSJY-DGP80B | WSJY-DGP90B | WSJY-DGP120B |
| Capacity | 0.25-0.3t/h | 0.35-0.4t/h | 0.5-0.6t/h | 0.7-0.8t/h |
| Main motor | 18.5kw | 22kw | 37kw | 55kw |
| Assistant motor | 0.6kw | 1.1kw | 1.1kw | 1.1kw |
| Screw diameter | 70mm | 80mm | 90mm | 120mm |
| Cutting motor | 0.6kw | 0.75kw | 1.1kw | 1.5kw |
| Conditioning motor | 1.1kw | 1.5kw | 2.2kw | 2.2kw |
| Dimension | 2.46*1.55*1.74m | 2.65*1.45*1.75m | 2.6*2.1*1.9m | 3.2*1.95*1.9m |
| Weight | 940kg | 1000kg | 2000kg | 2200kg |
>>
