Basic Info.
Max.Capacity
100-200 L/min
Structure
Single-stage Pump
Application
Clean Water Pump
Performance
Automatic Pump
Fuel Tank Capacity(L)
1.3
Dimensions(mm)
410*290*315
Specification
420X330X338MM
Production Capacity
5000000/Month
Packaging & Delivery
Package Size
42.00cm * 33.00cm * 33.80cm
Package Gross Weight
10.000kg
Product Description
Product Description

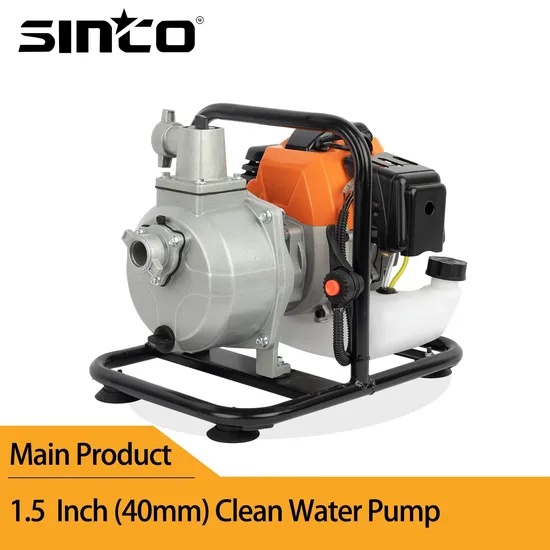

Features for 1.5 Inch (40mm) Clean Water Pump
1. Economical, reliable and durable
2. Easy to strt, durable OHV, high quality
3. Oil alert to shut down engine automatically when low oil is detected
4. Pump body made of light-weight but strong aluminum alloy
5. Cast iron volute and impeller
6. High-quality ceramic mechanical sealling
7. Max. pump lift of 20m, Max. suction of 5m
8. CE, SONCAP, ISO9001:2000 certification approved
9. One year or 1000 hours warranty
Why chose us?
1.More than 10 years experience of garden machinery.
2.Factory direct price.
3.Have 2 or 3 new model every year.
4.Small orders welcome.
5.Engineers provide technical services.
6.All spare parts pass strict and accurate raw material detection.
7.Mordern production workshop,strict producing process.ensure a fast and high-quality products output.
8.Famous brand ,every spare parts suppliers are choosed extremely strict to control the quality well.
9.As a professional manufacture,I think we must have one type even more can match what you need!Product Parameters
| Reference picture | | | | | |
| Specification | SCW25 | SCW50 | SCW80 | SCW100 | SCW150 |
| PUMP | Type | self-priming,centrifugal pump |
| Inlet/Outlet inch (mm) | 1"(25mm) | 2"(50mm) | 3"(80mm) | 4"(100mm) | 5"(150mm) |
| Max.head(m) | 20 | 27 | 28 | 25 | 20 |
| Suction lift (m) | 5 | 8 | 7 | 7 | 5 |
| Max.capacity(L/min) | 102 | 500 | 1000 | 1300 | 2100 |
| ENGINE | Model | 1E44F-5 | SH210 | SH210 | SH420 | SH420 |
| Displacement (CC) | 52 | 208 | 208 | 420 | 420 |
| Maximum output(HP) | 1.5 | 7 | 7 | 14 | 14 |
| Working speed(rpm) | 6800 | 3600 | 3600 | 3600 | 3600 |
| Fuel tank capacity(L) | 1.3 | 3.6 | 3.6 | 6.5 | 6.5 |
| UNIT | Dimensions(mm) | 410*290*315 | 487*415*402 | 520*415*430 | 665*545*575 | 885*6440*760 |
| Net Weight(kg) | 8 | 25 | 29 | 47 | 129 |
Main products
Company Profile
Our Service
Our products include:
1, Gasoline Type Engine: 2.6HPp,5.5Hp, 7.0Hp, 7.5 Hp ,14.0Hp and 16.0Hp.
2, Portable Gasoline Generators: 0.95kW, 1.0kW, 1.5kW, 2 kW, 3kW, 4kW, 5kW,6kW,7kW,8kW,9kW,10kW.
3,Water Pump: Clean Water Pump,High Pressure Pump,Chemical Water Pump, Sea Water Pump,Trash Pump.
4,Engines:SH90,SH210,SH225,SH420,SH460.
5,Hedge Trimmer,Brush cutter,Blower,Ground drill and Chain saw.
