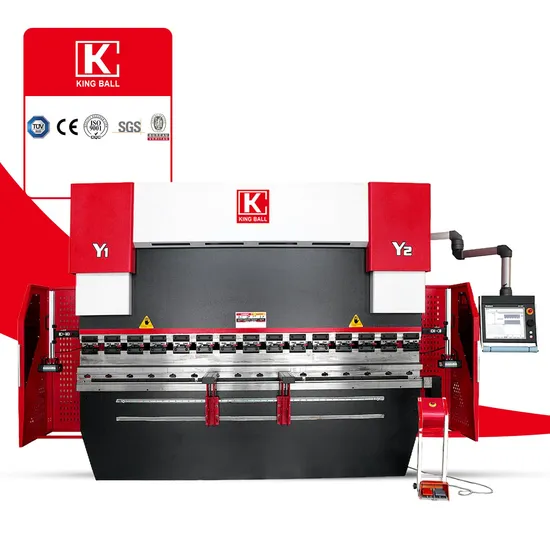

High Precision 4+1 6+1 8+1 Axes Automatic Sheet Metal Bending Press Brake Machine Esa S630 S640 Controller CE

Product Description

Electro-hydraulic CNC Press Brake			KCN-40040	KCN-40050	KCN-40060	KCN-50040	KCN-50050	KCN-50060
Capacity		kN	4000	4000	4000	5000	5000	5000
Max. Bending Length		mm	4000	5000	6000	4000	5000	6000
Between Columns		mm	3100	4000	4800	3100	4000	4800
Max. Shut Height		mm	580	580	580	590	590	590
Slide Stroke		mm	320	320	320	320	320	320
Throat Depth		mm	400	400	400	500	500	500
Down Speed		mm/s	110	110	110	100	100	100
Pressing Speed		mm/s	9	9	9	9	9	9
Return Speed		mm/s	100	100	100	90	90	90
Main Motor Power		kW	30	30	30	37	37	37
X axis stroke		mm	600	600	600	700	700	700
X axis speed		mm/s	250	250	250	250	250	250
R axis stroke		mm	200	200	200	200	200	200
R axis speed		mm/s	60	60	60	60	60	60
Outline Size	L	mm	4500	5500	6500	4500	5500	6500
	W	mm	2400	2600	2650	2800	2800	2800
	H	mm	4000	4150	4300	4100	4200	5200
Weight		kg	25000	29000	35000	38000	42000	50000

Our Service Pre-sales services: 1. inquiry and consulting support 2. sample testing support 3. visit our factory After-sales services: 1. 2 years warranty period 2. training how to install and use the brake press machine 3. engineers available to service machinery
overseas Contact Ways Ms. Linda Zhang Customer Manager E-mai:linda@jinqiu.cc FAQ
1.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For machine in stock, the lead time is within one week.For mass production, the lead time is 20-35 working days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products.
If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship.Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way.By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.

---
