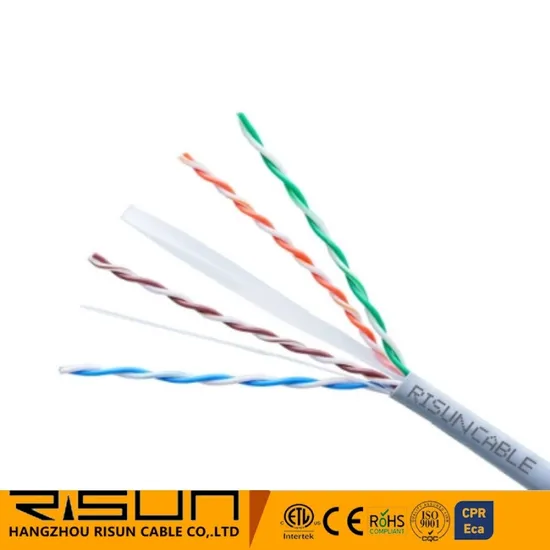

U/UTP CAT6 PVC Solid Cable

Product Description

Product Description
Manufactured according to ISO / IEC 11801-2, TIA-568-C.2, EN-50173.

Conductor	Solid bare copper : 0,56±0.01 mm
Insulation	HDPE : 1.0±0.05 mm
Identification of pairs
1 pair	Blue - White / Blue
2 pair	Orange - White / Orange
3 pair	Green - White / Green
4 pair	Brown - White / Brown
Filler	Yes
Ripcord	Yes
Sheath	PVC
Color	Gray (other colors are available upon request)
Bending radius	≥ 8 x Diameter (mm) Installation
Storage temperature	-15ºC-+70ºC

Electrical Characteristics

Frequency (MHz)	Return Loss >=dB	ATT <=dB/100m	Next >=dB	DELAY <=ns100m	PS NEXT >=dB	EL FEXT <=dB/100m	PS EL FEXT >=dB/100m
1	20.0	2.03	74.3	570.0	72.3	67.8	64.8
4	23.0	3.78	65.3	552.0	63.3	55.8	52.8
8	24.5	5.32	60.8	546.73	58.8	49.7	46.7
10	25.0	5.95	59.3	545.38	57.3	47.8	44.8
16	25.0	7.55	56.2	543.0	54.2	43.7	40.7
20	25.0	8.47	54.8	542.05	52.8	41.8	38.8
25	24.3	9.51	53.3	541.20	41.3	39.8	36.8
31.25	23.6	10.67	51.9	540.44	49.9	37.9	34.9
62.5	21.5	15.38	47.7	538.55	45.4	31.9	28.9
100	20.1	19.80	44.3	537.60	42.3	27.8	24.8
200	18.0	28.98	39.8	536.54	37.8	21.8	18.8
250	17.3	32.85	38.3	536.27	36.3	19.8	16.8

nº Pairs.x Ф 4x2x23AWG
Conductor Resistance max.75 Ω/km
Resistance Unbalance max.5%
Cap. between cond. pair 56nF / 100m
Velocity of Propagation 69%
Impendance 100±15 Ω
Appliance Cable for data transmission in structured cabling networks (LAN), horizontal and secondary facilities.
Packing Package Size:42.00cm * 42.00cm * 22.00cm
100 m / box
305 m / pull box
305 m / wooden drum
500 m / wooden drum

Company Profile Since its creation in 2007, We has been aspecialize manufacturer of high quality network cable including CAT3,CAT5e,CAT 6,CAT6A,CAT 7,Alarm & Security cable,Jumper wire,Telephone cable,Audio, Speaker & power cable,Bus system cable and Control cable.
Our company maintains a quality assurance system to interational standard ISO 9001, ,EN 50575,RoHS,UKCA,CE,ETL and EPD to meet all clients expectation. With a strong commitment to quality and customer satifaction,we have successfully served clients in Europe,America, Asia,and Middle east.

Certifications
Mode of trade We support FOB CIF DDP DDU EXW, usually FOB

---
