China Factory Price High Quality Blending Machine for Powder Metallurgy

Product Description

Product Description

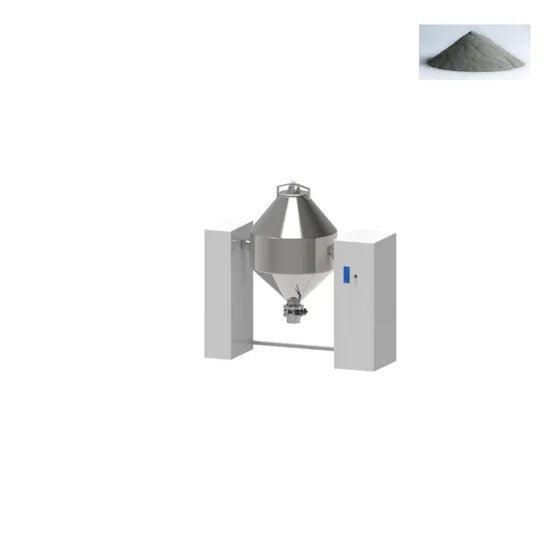

Double cone mixer is widely used in chemical industry, medicine, food, magnetic materials, battery powder, alloy materials, powder metallurgy and other fields.The double cone mixing machine can be used for powder and powder mixing, powder and particle mixing, etc.
The mixing cylinder adopts a double cone structure, the material rolls back and forth in the cylinder body, and can also be reversed after clockwise rotation to accelerate the diffusion and flow of the material, so that the material does not produce agglomeration when mixing.
Characteristics
Double cone mixing blender can evenly mix materials, shorten mixing time, reduce energy consumption, ensure product quality and improve production efficiency. It has played a certain social and economic benefits, and is an ideal equipment for solid powder mixing.
Product Parameters

Model	Volume(L)	Max loading volume (L)	Max loading weight (Kg)	Mixing Time (min)	Motor(KW)	Mixing Speed (r/min)	Overall Dimension (L×W×H)mm
XM-50	50	25	25	0-99	1.1	20	1500*450*1200
XM100	100	50	50	0-99	1.5	20	1550*550*1350
XM-200	200	100	100	0-99	2.2	20	1800*700*1500
XM-300	300	150	150	0-99	3	20	2100*760*1760
XM--500	500	250	250	0-99	5.5	20	2320*950*1920
XM--1000	1000	500	500	0-99	7.5	10	2450*1050*2500
XM--1500	1500	750	750	0-99	7.5	10	2900*1300*2700
XM--2000	2000	1000	1000	0-99	11	8	3000*1400*3100
XM--2500	2500	1250	1250	0-99	11	6	3600*1400*3200
XM--3000	3000	1500	1500	0-99	15	6	4000*1500*3500
XM--4000	4000	2000	2000	0-99	15	6	4800*1300*3800
XM--5000	5000	2500	2500	0-99	18.5	5	5400*1300*4000
XM--6000	6000	3000	3000	0-99	22	5	5650*1300*4380
