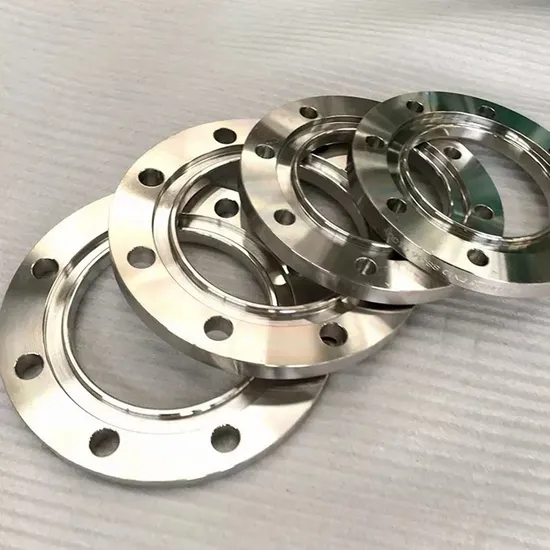

China Factory ANSI B165 ASTM A105 A106 Carbon Steel Forged Welding Neck Flange

Product Description

ANSI B165 ASTM A105 A106 Carbon Steel/ Q235 / Stainless Steel FF RF TG RJ Matel Ss400 Forged Welding Neck Flanges
1.Product Introduction
Shandong Shengxiangtong Flange Co., Ltd is located in Jinan City, Shandong Province, with convenient transportation and fast logictics.
The main flanges include: stainless steel flanges, flat welding flanges, butt welding flanges, blind flanges, large diameter elbows, high pressure flanges, small diameter flanges, tube plates, manhole flanges and elbows , Tee and other products.
Shengxiangtong Flange have been sold to Africa, Europe, the Middle East, Southeast Asia, South America, etc, over 30 countries, has a high reputation in the overseas markets.
2.Product Details
1.Face Type: Available of raised face(RF), full face(FF), Ring joint(RTJ) , Groove, Tongue, or customized.
2.Seal face: smooth face, waterlines, serrated finished
3.CNC fine finished.
Face finish:
Arithmetical Average Roughness Height(AARH).
The finish is determined by the standard used.
ANSI B16.5 specifies face finishes within a range 125AARH-500AARH(3.2Ra to 12.5Ra).
Other finishes on requst
1.6 Ra max,1.6/3.2 Ra, 3.2/6.3Ra or 6.3/12.5Ra.
The range 3.2/6.3Ra is most common

Technology		Forging
Size Range		DN 10 - DN 2000
		1/2"- 48"
Pressure Ratings	Class	150#, 300#, 600#, 900#, 1500#, 2500#, etc.
	PN	PN2.5, PN6, PN10, PN16, PN25, PN40, PN63, PN100, PN160, etc.
Sealing Type		FF, RF, RJ, FM, M, T, G, etc.
Sealing Finish		Smooth or Spiral Finish (As your request)
Materials	Stainless steel	ASTM A182 Gr. F304/304L/316/316L ASTM A403 WP304/304L/316/316L ASTM A351 Gr. CF3/CF8/CF3M/CF8M
	Duplex steel	UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462, 1.4410, 1.4501 and etc.
Varieties		PL (Plate Flat), WN (Weld Neck), BL (Blind), SO (Slip-ons), SW (Socket Welds), TH (threaded), LJ/SE(Lapped Flange/Stub ends), PJ/SE, LF/SE, etc.
Standard	USA	ASME B16.5, ASME B16.47, MSS SP-44, AWWA C207
	European Union	EN 1092-1
	Britain	BS 4504, BS 10
	Australia	AS 2129, AS/NZ 4087, AS 4331
	New Zealand	AS/NZ 4087
	Russia	GOST 12820, GOST 12815, GOST 12821, GOST 33259
	Germany	DIN 2627 - DIN 2638, DIN 2558, DIN 2665 - DIN 2569, DIN 2573, DIN 2576, DIN 2641, etc.
	Korea	KS B1503
	Japan	JIS B2220
	South Africa	SABS 1123, SANS 1123
	ISO	ISO 7005-1
Package		PE film + Plywood case
Trade Terms		EXW, FOB, CFR, CIF, etc.
Payment Terms		T/T, L/C, CAD, Credit Card
Delivery Time		Within 20 days for massive quantity Within 7 days for stock products
Application		Petrochemical & Gas industry, chemical, machinery, electric power, shipbuilding, papermaking, construction Water works, Shipbuilding industry, Power industry, Valve industry,and general pipes connecting projects etc.

3.Application Scenarios Petrochemical industy;avation and aerospace industry; pharmaceutical industry;gas exhaust;power plant;ship buliding; water treament,etc.
4.Product Parameter

Product Name	ANSI B165 ASTM A105 A106 Carbon Steel/ Q235 / Stainless Steel FF RF TG RJ Matel Ss400 Forged Welding Neck Flanges
Size	1/2"-110"
Pressure	150#-2500#,PN0.6-PN400,5K-40K,API 2000-15000
Standard	ANSI B16.5,EN1092-1, SABA1123, JISB2220, DIN, GOST,UNI,AS2129, API 6A, etc.
Wall thickness	SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60,SCH80, SCH160, XXS and etc.
Material	Stainless steel: A182F304/304L, A182 F316/316L, A182F321, A182F310S, A182F347H, A182F316Ti, 317/317L, 904L, 1.4301, 1.4307, 1.4401, 1.4571,1.4541, 254Mo and etc. Carbon steel: A105, A350LF2, S235Jr, S275Jr, St37, St45.8, A42CP,A48CP, E24 , A515 Gr60, A515 Gr 70 etc.
	Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc. Pipeline steel: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc.
	Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,C22, C-276, Monel400, Alloy20 etc. Cr-Mo alloy: A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3,15Crmo, etc.

5.Product Advantages
1.Flange Types: Slip-On Flange, Welding Neck Flange, Blind Flange, Socket Welding Flange, Threaded Flange, Lap Joint Flange and Plate etc
2.Pressure Ratings: 150lbs, 300lbs, 600lbs, 900lbs...
3. High quality flanges
4. Compective price
5.Ready stock,
6.available in all sizes,customized;
7. Fast delivery
6.Product testing and quality control
7.Processing Procedure
8.Product Package
Shipping: WORLDWIDE SHIPPING. (Except some countries and APO/FPO) Goods delivered by 20" , 40" FCL/LCL by quantity or customer's request. Customers specifying freight forwarders or negotiable shipping methods! Delivery Time: 10-30days after conformed or according to quantity.
9.Company Introduction
Shandong Shengxiangtong Flange Co.,Ltd has a complete industrial production base, building area of more than 10,000 square meters. The company has modern workshops and professional production line, the company equipment: air hammer, hammer, press, grinding machine, CNC lathe, vertical lathe, CNC gantry drilling, CNC drilling, U automatically presbyopia machines also owns a group of highly professional design and development staff, high quality of the senior management staff and efficient technical personnel.
Shengxiangtong Flange mainly produces forged carbon steel flanges: flat flanges, sliding flanges, slotted flanges, galvanized flanges, special-shaped flanges such as method LAN. From the incoming inspection of materials and parts to the safety inspection of products, the whole process is checked by professional technical personnel to ensure the quality of products. Products are exported to Russia, South Africa, Japan, South Korea, Australia and other countries, our company has a good reputation and sales in the industry.
10.FAQ
Q: Why would I choose you?
A: We, Shandong Shengxiangtong Flange Co.,Ltd., has a complete industrial production base, building area of more than 10,000 square meters. The company has modern workshops and professional production line. Advanced manufacturing equipment, perfect inspection method would assure the quality of our products. Sovereignty for exporting and importing and over 15-year export experience would ensure our cooperation smooth.
Q: May I have free sample before ordering?
A: Yes, our company is very pleased to send you free samples for quality test, but freight cost would be afforded by your side
Q: What about production time?
A: Sample order: 4 - 7 days if out of stock, or deliver at once
Massive order: 5 - 20 days after getting deposit, depend on exact order
Q: Do your company have the export license?
A: Yes, we have Sovereignty for exporting and importing.
Q: Which trade terms can I choose?
A: Ex-W, FOB, CIF, CNF. As for others, we can negotiate accordingly
Q: How about payment term your company accept?
A: For small testing orders, we accept Western Union and T/T.
For massive order, we accept T/T and L/C.

---
