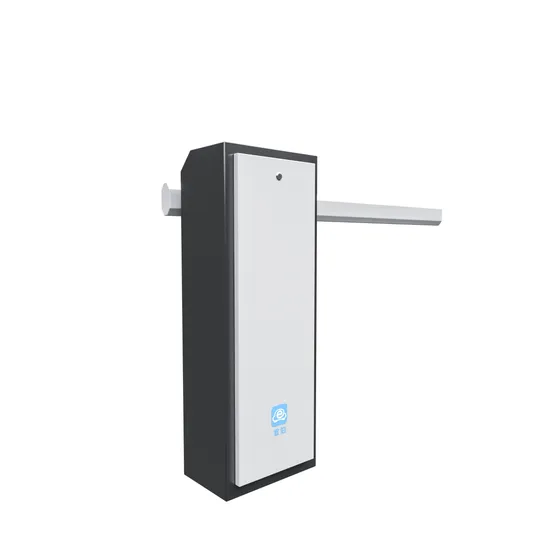

Barrera Vehicular Boom Barrier Gate Parking Gate with Smart System Automatic Radar Sensor for Barrier Gate Automatic Vehicle Traffic Parking

Product Description

Product Description 5 Million Times Automatic Security Car Boom Barrier Gate Car Parking Lot Management System dc brushless electric hotel
The YB-C40H Bluetooth Automatic Gate Barrier is widely used in various entrance and exit control scenarios, such as smart communities, residential areas, office buildings, commercial complexes, government and corporate institutions, schools, factories, and scenic areas, among others.
Functions and Features 1.Worry-Free Setup:Bluetooth Configuration via Mobile Phone
By establishing a connection between your mobile phone and the Bluetooth gate barrier,you can effortlessly fine-tune and configure the gate.This simplifies the setup process,making it more straightforward,
quick,and intuitive.Anyone familiar with using a mobile phone can assist in the configuration process.
2.Worry-Free after-sale:Remote debugging via computer
Bluetooth gate barrier offers the convenience of remote debugging from any location around the world
with an internet connection.
3.Worry-Free Usage:One-touch Disable/Enable
You can remotely disable and enable the Bluetooth barrier gate with a single click.
4.One-touch Cloning Functio
In case the mainboard encounters a malfunction and requires replacement,the one-touch cloning function allows you to remotely clone the previous operational parameters to the new mainboard.
5.AI Smart Voice Remote Controlt
Control the gate's operation through AI smart voice commands,providing a hands-free experience.
6.Cloud Server Management of the Gate Barrier
The Bluetooth gate barrier offers cloud-based management of various gate parameters.
7.Mobile Mini Program Gate Management
Manage and configure various gate parameters through a WeChat mini program.
8.Mobile App Gate Management
Utilize a mobile app to manage and configure the gate,as well as access various parameters.
Technical Parameter List

Barrier Gate	BC3015	BC4020	BC5035	BC6050
Boom Length	Round boom φ75, ≤3 m; Octagonal boom 80×46, ≤3 m	Round boom φ75, ≤4m; Octagonal boom 80×46, ≤4m	Octagonal boom 100×45, ≤5m	Octagonal boom 100×45, ≤5m
Open/Close Time	1.5 sec	2.0 sec	3.5 sec	5.0 sec

Transmission Ratio

1:60

1:120

Max. Power	140w
Power Supply	AC110-240V±15%
Machine Case	1.5mm Steel Plate
Machine Case Size (W×D×H)	325 × 240 × 962mm
Net Weight	38kg
Operating Temperature Range	-40~+60 ºC (temperature under -20ºC should be equipped with electric heating plate)
Driving Method	Brushless DC motor + Helical gear reducer
Protection System(IP)	54

Insulation Class	F
Relative Humidity	≤85%
Motor Unload Speed	2400r/min
Service Life	5 million times
Remote Control Distance	≤30m (empty environment, sunny weather)
Running Noise	<50dB
Surface Treatment	Outdoor metal powder electrostatic spraying

Spring Configuration

Boom Length	Spring
3 M Octagonal Boom 80x46 mm	Φ4.5x1pc
4M Octagonal Boom 80x46 mm	Φ5.5x1pc
5M Octagonal Boom 100x45 mm	Φ4.5 x1pc; Φ5.5 x1pc
6M Octagonal Boom 100x45 mm	Φ5.5x2pcs

Company Profile EBO-TECH's service network covers more than 300 cities across China, with its business expanding to Southeast Asia, including Malaysia, and countries along the Belt and Road Initiative. Its projects span commercial sectors, office buildings, transportation hubs, charging stations, and residential communities. Notable locations include the Wangfujing business district, SKP shopping mall, Hong Kong West Kowloon Plaza, Tianfu International Airport, Huaxi Hospital, Hongya Cave Scenic Area, Longmen Grottoes, Wanda Plaza, Rainbow Group, Suzhou Jiaotou, Changsha City Investment, JLL, Shanghai Gubei Property, Hong Kong Wharf Group, and many more. Over a thousand key clients and tens of thousands of parking lots across the country have chosen EBO-TECH's products and services.
EBO-TECH's team upholds the values of "Integrity, Responsibility, Progress, and Cooperation" and adheres to the mission of becoming the "most trusted partner for customers. " EBO-TECH is dedicated to improving the management of every parking lot, making car owners' travel experiences more enjoyable, and ensuring that every car owner, and every parking space, feels secure and satisfied thanks to EBO-TECH's services.
Production site Certifications Our Advantages Self-owned factory
All products are self-developed
Directly to the cloud
Easier installation
Higher operational efficiency
Lower maintenance costs
FAQ Q1:Are you manufacturer?
A:(yes)
Q2:What is the delivery cycle?
A:Usually one month
Q3:How do you ship the goods and how long does it take arrive?
A:We usually ship by DHL,UPS,FedEx or by Air.3-5 days after payment received.
Q4:Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.
Q5:Do you offer OEM service?
A:Yes,we can design the things according to your request.

---
