| US$30,000.00-32,000.00 | 1 Piece (MOQ) |

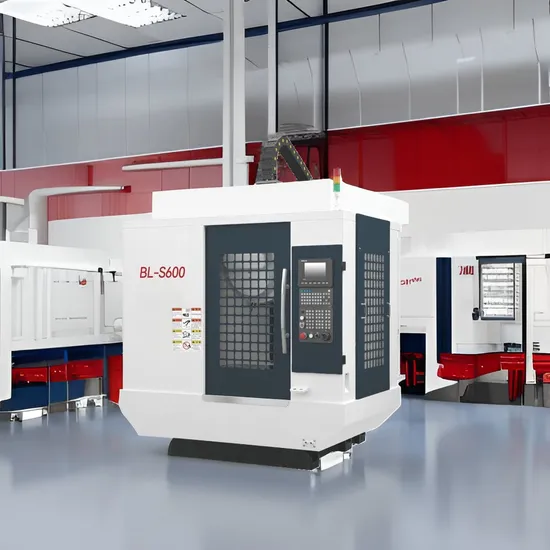

| Item | Specification | Unit | BL-S600 | BL-S800 |
| Capacity | Max. drilling dia.(U driller) | mm | Φ18 | Φ20 |
| Max. tapping dia. | mm | M16 | M18 | |
| Worktable | Table size(L×W) | mm | 700×420 | 900×500 |
| T slot(NO./width/distance) | mm | 3/14/125 | 5/18/90 | |
| Table max. loading | kg | 300 | 500 | |
| Spindle | Spindle motor power | kw | 5.5/7.5 | |
| Spindle type | / | BT30 | ||
| Spindle max. speed | rpm | Direct-drive 12000(opt.:20000) | ||
| Distance from spindle nose to table face | mm | 135~485 | 120~570 | |
| Feeding axes | X/Y/Z axes travel | mm | 600/400/350 | 800/520/450 |
| Cutting feed speed | mm/min | 5~15000 | ||
| X/Y/Z axes rapid moving speed | m/min | 48/48/48 | 48/48/36 | |
| Positioning precision | mm | ±0.003/300 | ||
| Repeatable positioning precision | mm | 0.003 | ||
| Tool magazine | Tool magazine type | / | Slant disc type | |
| Tools qty | / | 21 | 16 | |
| Tool changing time(tool to tool) | s | 1.6 | 1.8 | |
| Max. tool dia.(full/(no adjacent tool) | mm | Φ50/Φ120 | Φ60/Φ120 | |
| Others | Overall dimension(L×W×H) | mm | 1900×2100×2200 | 2400×1700×2100 |
| Weight | kg | 3000 | 4500 | |
| Item | Brand |
| Ball screw | TAIWAN-HIWIN/PMI |
| Linear guideway | TAIWAN-HIWIN/PMI |
| Ball screw bearing | SWEDEN SKF/GERMAN FAG |
| Spindle | TAIWAN |
| Tool magazine | TAIWAN-SANJET |
| Main electric parts | FRANCE-SCHNEIDER |
| Pneumatic parts | TAIWAN-AIRTAC |
| Lubrication pump | JAPAN-HERG |
