Product Details
Product Description
Product Description
Brand:GE

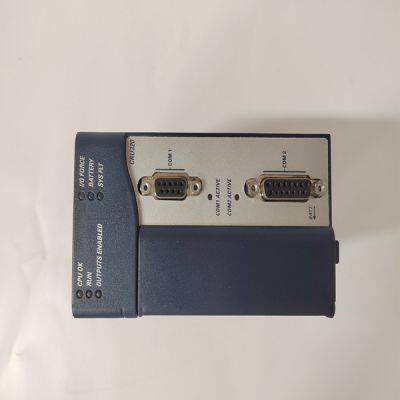

Type:IC695CRU320CA-EL
Origin:the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
DIALOG CONTROLLER The display is freely programmable with the Moog Axis Control Software (MACS) development environment. The predefined visualization elements such as buttons, bar graphs, meters, tables and histograms makes it easy to create visualization screens
FEATURES • Programmable with MACS/CoDeSys, no additional editor tool required • TFT technology for brilliant colors • Fanless operation • Communication to MSC / MSC II via Ethernet
Module Data TFT Touch Screen Display Designation DialogController Order number D137-004-004 Display 5.7“, color TFT ¼ VGA resolution, 320 x 240 pixels with touch screen D137-004-005 Display 10.4“, color TFT VGA resolution, 640 x 480 pixels with touch screen D137-004-006 Display 12.1“, color TFT SVGA resolution, 800 x 600 pixels with touch screen Dimensions: W x D x H in mm (in.) Dialog Controller 5.7“: 194 x 172 x 52 (7.6 x 6.8 x 2.0 in.) Dialog Controller 10.4“: 360 x 260 x 77 (14.2 x 10.2 x 3.0 in.) Dialog Controller 12.1”: 440 x 300 x 77 (17.3 x 11.8 x 3.0 in.) Weight Dialog Controller 5.7“: ca. 1.5 kg (approx. 3.3 lbs.) Dialog Controller 10.4“: ca. 5 kg (approx. 11 lbs.) Dialog Controller 12.1”: ca. 6 kg (approx. 13.2 lbs.) Temperature range Operation: 0 °C (32 °F) to 50 °C (112 °F) fanless technology Transport storage: -20 °C (-4 °F) to 70 °C (158 °F) Relative air humidity 10 % to 95 % (non-condensing) Operation height Max. 2000 m (6500 feet); storage/transport max. 3000 m (9800 feet) Processor PowerPC Processor, 32 Bit, RISC architecture with floating point unit Memory 32 MB / 24 MB for application Retain memory 16 kByte Real-time clock Yes, battery buffered Development environment MACS 2.x / CoDeSys 2.3 Runtime software CoDeSys 2.3 with Target-Visualization, real time operating system with multitasking Standards Interference emission / immunity EN 61000-6-4 / EN 61000-6-2, industrial part Shock / vibration IEC 60068 part 2-27 / IEC 60068 part 2-6 Protection class / protection system III / IP20 (front IP 65) Insulation strength IEC 61131-2; test voltage 500 V DC Energy Supply Voltage supply of module electronics 24 V DC (-15/+20%) SELV pursuant to DIN EN 60950-1 Current consumption 1 A typical / 2 A maximum Potential separation Yes between CAN bus and I/Os Interfaces Ethernet (100BaseT) 10/100 MBit/s with 8-pole RJ45 connection (recommended as interface to MSC / MSC II) USB 1 x host USB Rev. 1.1 (on front) 1 x host USB Rev. 1.1 (on rear) CAN interface Transmission rate adjustable, 10 kBit/s to 1 MBit/s Serial port 2 x TIA/EIA 232, 1 x TIA/EIA 485
>>
