Product Description 2024 Newest OPS Mini PC i3 DDR5 Intel Alder Lake-P CPU 12th Gen Support Four Screen 4K Display Mini PC Fanless Computer Industrial for electronic whiteboard, digital signage, advertising media and all in one control industry.
OPS Mini PC RAM: 8GB 16GB 32GB Optional. Product Parameters
| Processor System | CPU | Intel® Alder Lake-P Platform, 12th Gen Processor, Max. TDP 28W |
| BIOS | AMI UEFI BIOS |
| Graphics | GPU | Intel® Iris® Xe Graphics |
| Multi displays | 4 Simultaneous 4K Displays |
| Interface | 1 x HDMI1.4 Out, Resolution 4096 x 2160 @ 30Hz |
| 1 x Type-C(4K60Hz Display and USB Data) |
| 1 x DP1.4 8K30Hz |
| 1 x 80PIN JAE Con. HDMI2.0 Resolution 4096 x 2160 @ 60Hz |
| Memory | Type | SoDIMM DDR5 |
| Max | 32GB |
| Ethernet | Lan 1 | 1 x 10/100/1000Mbps |
| Connector | 1 x RJ45 |
| Wireless | Type | PCIe+USB Wi-Fi/BT Module ,Support Intel CNVi Module |
| Interface | 1 x M.2 2230 For Wifi+BT Module |
| Storage | Type | SSD |
| Interface | 1 x M.2 Key M 2280 For SATA/NVMe SSD |
| IO Interface | Front panel | 1 x HDMI1.4 Out |
| 2 x USB3.1 , 2 x USB2.0, 1 x Type-C (4K60Hz Display and USB Data) |
| 1 x RJ45 |
| 1 x Line-out and Mic-In Two In One Port |
| 2 x Wi-Fi/BT ANT |
| 1 x Power button, 1 x Reset button |

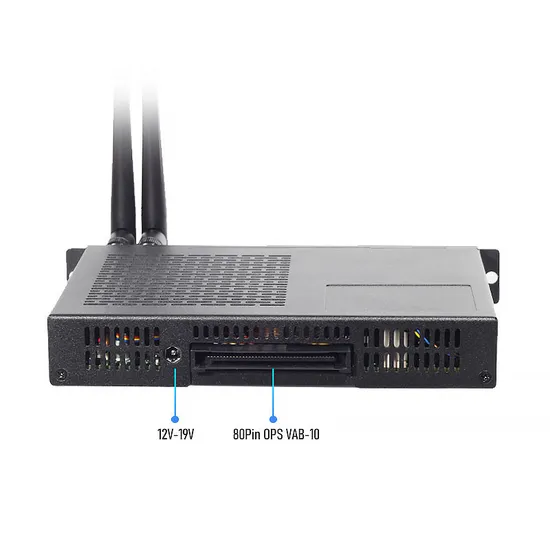

| Rear panel | 1 x JAE 80Pin : 1x HDMI 2.0 2x USB2.0 , 1x USB3.0, TTL |
| 1 x 2.5/5.5 DC IN JACK |
| Software | OS Supports | Compatible Windows10/ Compatible Windows11/Linux |
| Watchdog | Support |
| vPro/AMT | Support |
| TPM | Support , TPM2.0(Optional) |
| Power | Power Input | 12V/19V DC IN, 2.5/5.5 DC Jack & JAE 80pin DC IN |
| Size | | Comply With OPS Standard Module,119 x 180 x 30 mm |
| Environment | Operating Temp. | -10~50ºC |
| Operating Humidity | 10%~90% Non-condensing |
| Storage Temp. | -20~70ºC |
| Operating Humidity | 5%~90% Non-condensing |
OPS OPS PC module for Interactive Flat Panel.
| Product Name | i3 11th/12th/13th Generation RAM 8GB/16GB/32GB Hard Drive 128GB Windows10/ Linux OPS PC |
| Q1: | How's the quality? |
| A1: | We are the original factory of the brand "MTHGH",All our products are patented and certified.we have our own R&D team and all our products are manufactured at our own factory with extremely quality control system |
| Q2: | What is the minimum order? |
| A2: | one set only! our company mainly deals with wholesale deals here,but retail and small orders also welcome.we hold retail store at domestic market and oversea such as Amazon,******....Orders here will also enjoy super retail service such as 30 days free return for defective item |
| Q3: | what's the shipment terms and delivery time of your compay? |
| A3: | Well, it's depends on the quantity of your order.We have plenty of stock for standard requirement item normally we can delivery the item 1-2 business day.but if you need OEM/ODM order,the shipment time will last to 7-20 business days |
